modelWindowWithoutShade
Natural convection in an empty room with exterior walls, windows without shade
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.ThermalZones.Detailed.Examples.FFD.BaseClasses.PartialRoom (Partial model for a room).
Information
This model tests the coupled simulation of Buildings.ThermalZones.Detailed.CFD with the FFD program by simulating natural convection in a room with only exterior walls and windows.

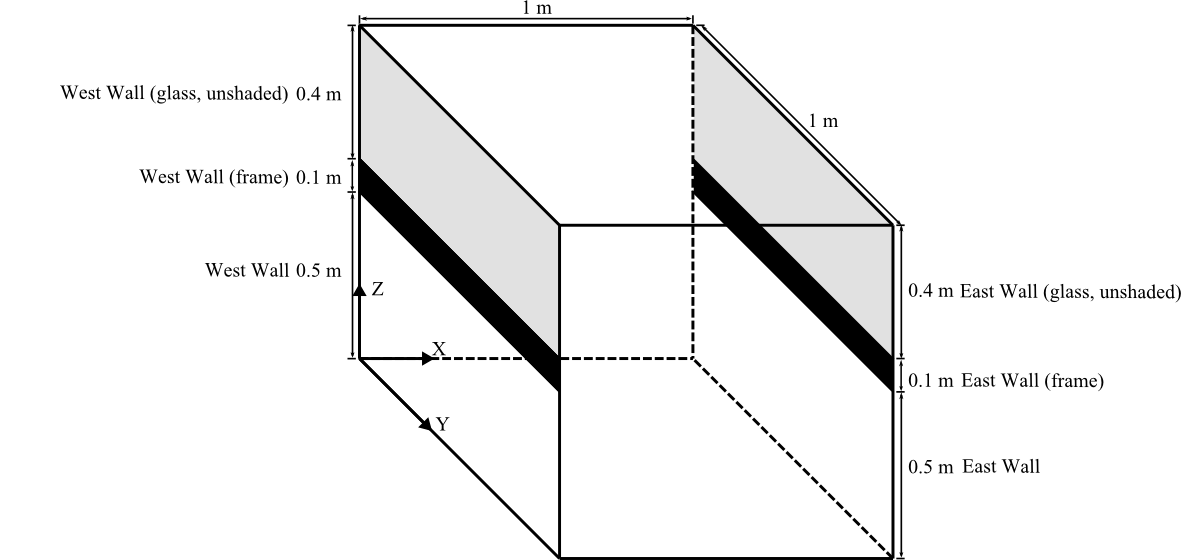

Figure (a) shows the schematic of FFD simulation. The walls are exposed to the ambient environment. Both the wall and window are well insulated and the initial temperature of the walls and the window is 20°C.
Figure (a)
Figure (b) shows the velocity vectors and temperature contour in degree Celsius on the X-Z plane at Y = 0.5 m as simulated by the FFD.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | nConExtWin (from PartialRoom) | 0 | Number of constructions with a window |
| Integer | nConBou (from PartialRoom) | 0 | Number of surface that are connected to constructions that are modeled inside the room |
| Integer | nSurBou (from PartialRoom) | 0 | Number of surface that are connected to the room air volume |
| Integer | nConExt (from PartialRoom) | 0 | Number of exterior constructions withour a window |
| Integer | nConPar (from PartialRoom) | 0 | Number of partition constructions |
| HeatTransfer.Data.OpaqueConstructions.Insulation100Concrete200 | matLayExt | Construction material for exterior walls | |
| HeatTransfer.Data.GlazingSystems.DoubleClearAir13Clear | glaSys | Data record for the glazing system |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Buildings.ThermalZones.Detailed.CFD | roo (from PartialRoom) | Room model | |
| Modelica.Blocks.Sources.Constant | qConGai_flow (from PartialRoom) | Convective heat gain | |
| Modelica.Blocks.Sources.Constant | qRadGai_flow (from PartialRoom) | Radiative heat gain | |
| Modelica.Blocks.Routing.Multiplex3 | multiplex3_1 (from PartialRoom) | ||
| Modelica.Blocks.Sources.Constant | qLatGai_flow (from PartialRoom) | Latent heat gain | |
| Buildings.BoundaryConditions.WeatherData.ReaderTMY3 | weaDat (from PartialRoom) |
Revisions
-
August 13, 2013, by Wangda Zuo:
First implementation.
