modelForceToStockValue
Extends from BusinessSimulation.Interfaces.PartialCLD.StockInfoToFlow (Partial model with stock info input and flow port).
Information
This information is part of the Business Simulation Library (BSL). Please support this work and ► donate.
The force to stock value notation follows the one proposed by van Zijderveld [24]. It indicates some form of control as the influencing stock's value—connected to the stockInfoInput—provides the setpoint for a process of "closing the gap" adjustment (CloseGap) with regard to the influenced stock connected to the component's flowPort.

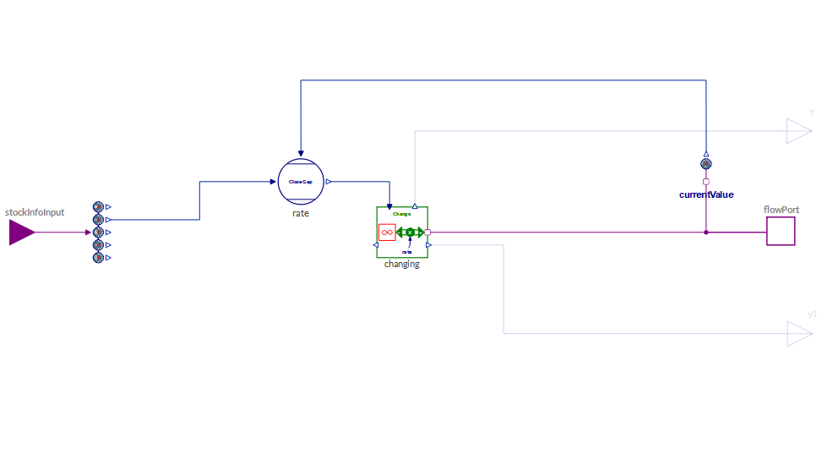

Implementation
 |
Notes
For more options, e.g., have control be active during limited period, use the →SimpleControl component with an optional input for the setpoint (hasExogenousSetpoint = true) and connnect it to the influencing stock using →StockInformation.
See also
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Units.Time | adjTime | modelSettings.dt | Time to close the gap |
| Structural Parameters | |||
| Boolean | hasRateOutput (from FlowPort) | false | = true, if the rate is reported via real output connectors |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| FlowPort | flowPort (from FlowPort) | Used to represent stock and flow connections | |
| Connectors.StockInfoInput | stockInfoInput (from StockInfoToFlow) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| RealOutput | y (from FlowPort) | Output of current rate of flow | |
| RealOutput | y1 (from FlowPort) | Output of current rate of flow | |
| ModelSettings | modelSettings |
Revisions
- Introduced in v2.0.0.
