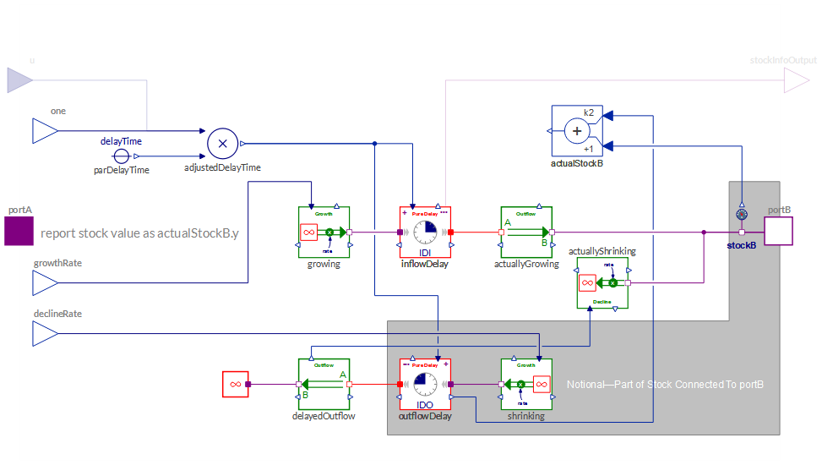

The →PureDelay is used to model a pipeline delay. The aggregate nature of causal loop modeling requires to make a clear distinction between delaying an inflow as opposed to an outflow to the stock connected to the flowPort: A delayed inflow will reach the stock with a delay, while a delayed outflow will leave the stock with a delay.
While modeling a delayed inflow is uncontroversial, modeling a delayed outflow imposes choices: Setting subtractDelayedOutflow = true will report the current amount in the stock less the amount that is in the process of being delayed at the stockPort. Accordingly, a process of exponential decay will not drain the stock below zero.
If this is not wanted, setting subtractDelayedOutflow = false will report the actual stock level, i.e., any material that has not yet left the stock will be considered a still active member of the stock in the process . Accordingly, a delayed process of exponential decay could drain the stock below zero.
 |
stockPort. Other flows connected to the stock, that is connected to the stockPort of the component will see the stock value without any "premature" deductions, i.e., material will only be deducted from the stock once it as truly left the stock.MaterialStock cannot be drained below zero.inflowDelay and outflowDelay are by default initialized with zero elements in the process of flowing into and out of the connected stock. This can be changed by changing the values for the parameters IDO and IDI in the Initialization tab.
