This test case
has been created to test the GovSteamEU governor
model.
It has been
derived
from Dynawo.Examples.SMIB.Standard.GovSteam1St4b2.
It represents a
500 MVA synchronous machine connected to an infinite bus through a
transformer and a line, with an active and
reactive load between the transformer and the
line.
A load step is introduced at t=0.1 s.

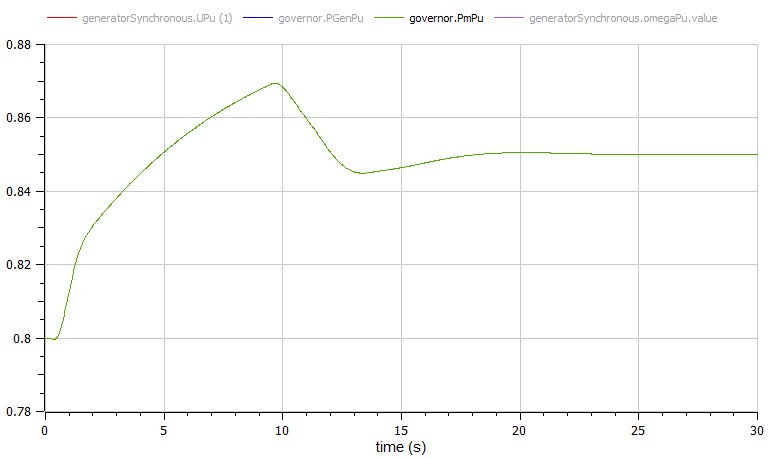

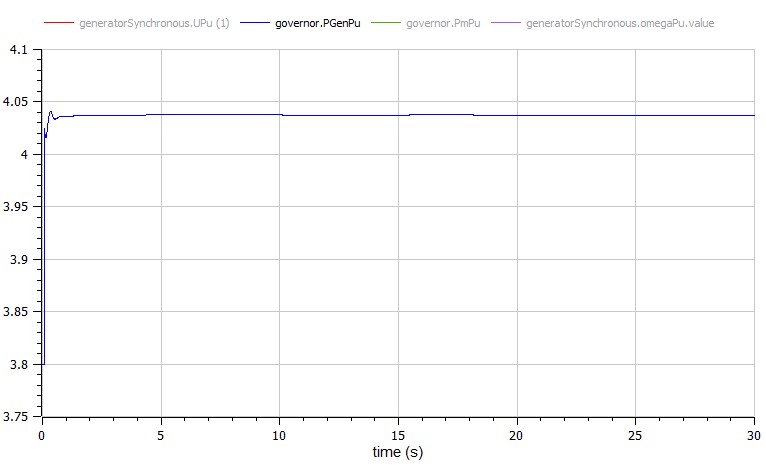

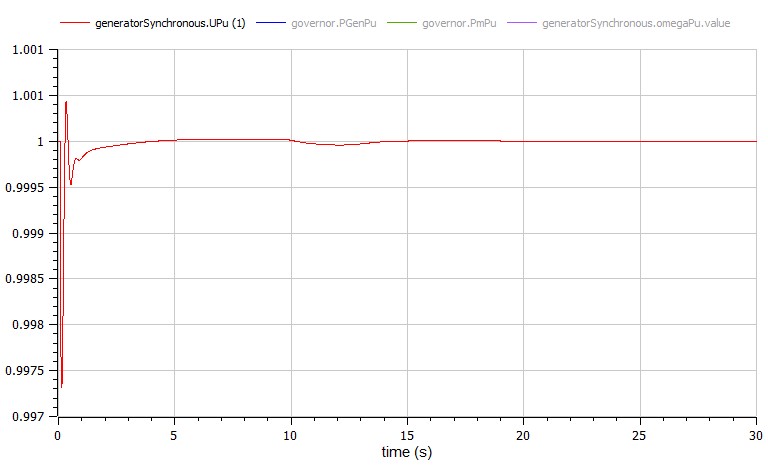

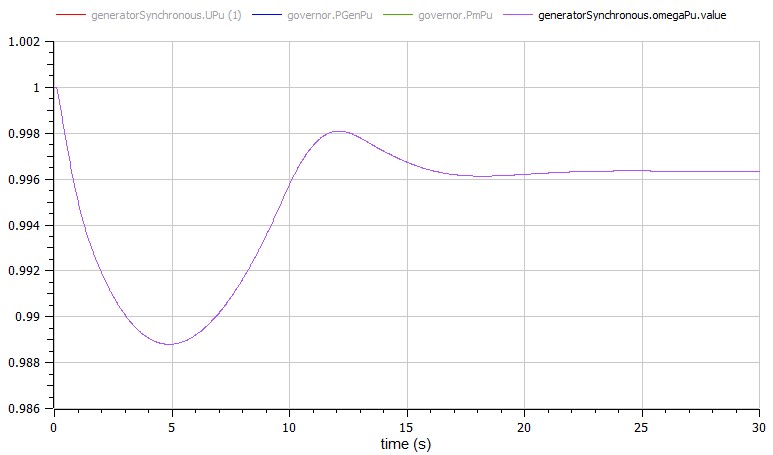

Below the response of generated
active power, mechanical power, voltage and frequency are
shown.
.Dynawo.Examples.SMIB.Standard.GovSteamEuSt4b
