.FCSys.Connectors

Information

FCSys uses four types of declarative connectors. The chemical connectors (Chemical and Reaction) represent the diffusion of material and the advection of other quantities among configurations (i.e., species in particular phases) that react chemically within a subregion. The inert connectors (Intra, Inter, Inert, and InertNode) describe the diffusive exchange of momentum and energy among configurations within a subregion. The mixing connectors (Amagat and Dalton) describe how species are combined within a phase and how phases are combined within a subregion. The boundary connectors (Boundary and BoundaryBus) describe the transport between neighboring regions or subregions.

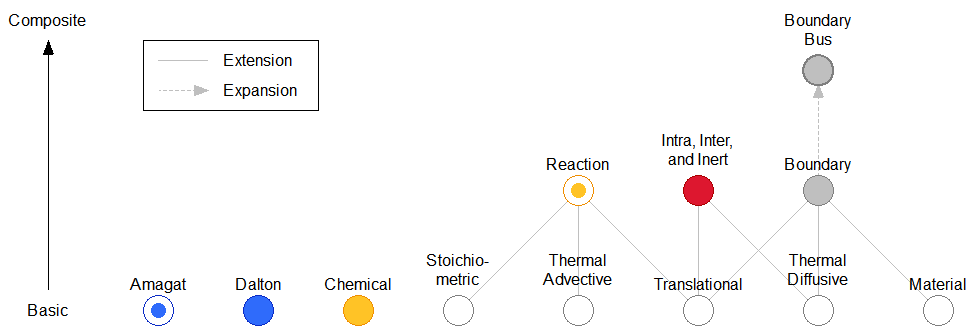

Figure 1 shows the hierarchy of the declarative connectors. The top row contains a bus connector (BoundaryBus), which expands to group the Boundary connectors of multiple species. The connectors in the middle row are flat; they build on the connectors of the bottom row by extension. Each icon on the bottom row represents one effort/flow pair, which may or may not be implemented as a separate connector. The Chemical connector also has stream variables to represent the advection of translational momentum and thermal energy.


Figure 1: Hierarchy of the connectors.

The Chemical connector is used for a single species in a chemical reaction or phase change process. It expresses the rate of consumption or generation of a species at a chemical potential. The Reaction connector is used for the chemical reaction as a whole. It has chemical potential as a flow and current as an effort (opposite designations of the Chemical connector). It sums the stoichiometrically weighted chemical potentials of the species participating in a reaction. Its effort variable is the rate of the reaction. Chemical and Reaction cannot be directly connected because they have opposite efforts and flows. An adapter must be used (e.g., ChemicalReaction), which applies the stoichiometry.

The Amagat connector imposes Amagat's law of partial volumes and is used to combine material phases within a subregion. The Dalton connector applies Dalton's law of partial pressures to mix species within a phase (e.g., N2 and O2 within a gas). The two cannot be directly connected because they have opposite efforts and flows. An adapter must be used (e.g., AmagatDalton).

In addition to the declarative connectors, there are connectors with inputs and outputs. The RealInput, RealInputInternal, RealInputBus, and RealInputBusInternal connectors contain only Real input variables. The RealOutput, RealOutputInternal, RealOutputBus, and RealOutputBusInternal connectors contain only Real output variables.

Relation to Thermodynamics:

In order to describe the dynamic behavior of a physical system, a model must include conservation laws or rate balances. These equations involve the storage and flow of extensive quantities within (among configurations) and into the system. In chemical/thermal systems, the extensive quantities of interest are particle number (or mass) and energy. For the sake of simplicity, momentum will be excluded from the present discussion; assume that the fluid is macroscopically stagnant. Also assume that there is only one inlet or outlet to the system. In terms of mathematics, we have introduced four variables (2 flows and 2 quantities) but only two equations (material and energy conservation).

Two additional equations involve flow rates; these are transport equations with spatial nature—separate from the temporal conservation equations. Empirical evidence indicates that the the flows are related to differences in efforts or generalized "driving forces." The efforts are usually conjugate to the quantities with respect to energy. For the chemical/thermal system, the efforts are then chemical potential and temperature. Yet these are intensive properties—distinct from the quantities, which are extensive. So far, there are two rate balances to relate extensive quantities to flows and two transport equations (4 equations in all) and six variables (2 quantities, 2 flows, and 2 efforts or intensive properties).

One extensive quantity can be divided by the other to yield an intensive property. For example, internal energy can be divided by particle number to give internal potential (the relationship is not as direct for chemical potential, but the concept is the same). The other equation involves the spatial extent of the system, for example, the extensive volume of the system divided by particle number to give specific volume. This introduces another variable (extensive volume); now there are six equations and seven variables.

In a Eulerian frame of reference, we assume that the extensive volume of the system is fixed (i.e., that the system is a "control volume").1 If there is only one species in the system, then we can assume that it fills the entire volume (e.g., no macroscopically observable regions of vacuum). If another species is included in the system, the number of variables is doubled. All of the equations may be repeated except that the specific volume of each species is its own extensive volume or "partial volume" divided by its particle number to give "partial specific volume." It is reasonable to assume that the sum of the partial volumes is equal to the total volume of the system (again, no voids). This is a generalization of the previous equation that set the volume of the single species equal to the volume of the system or control volume. However, now there are three volumes (of each configuration and of the system) instead of two (of the one configuration and of the system) but no additional equations.

In general, an additional equation may be added to exchange volume between the two species such that they reach equilibrium. This could be modeled by another transport-like equation. However, in the FCSys package, it is assumed that this equilibrium already, always exists. Since we wish to impose that the sum of the two partial volumes is equal to the total volume, it is appropriate to set the flow variable to be the quantity itself (volume) rather than the rate of the quantity. Then, there is no need for another rate balance to relate the quantity to the flow; the quantity is the flow. In this case, the most appropriate effort variable is pressure. The relationship among pressure, specific volume, and temperature is given by an equation of state. This additivity-of-volume interaction occurs in the VolumeFixed model.

If the species are mixed, it may be more appropriate to assume that the pressures of the components of a mixture sum to the total pressure of the mixture. This additivity of pressure is described by connections of the Dalton connector.


1. In a Lagrangian frame of reference, the amount of material is fixed and thermal energy is reduced to random motion since particles are tracked directly. There are only the momentum conservation equations.

Licensed by the Hawaii Natural Energy Institute under the Modelica License 2
Copyright © 2007–2014, Hawaii Natural Energy Institute and Georgia Tech Research Corporation.

This Modelica package is free software and the use is completely at your own risk; it can be redistributed and/or modified under the terms of the Modelica License 2. For license conditions (including the disclaimer of warranty) see FCSys.UsersGuide.License or visit http://www.modelica.org/licenses/ModelicaLicense2.

Contents

Name Description
 Chemical Connector for a species in a reaction or phase change process
 Reaction Connector for the combination of species in a chemical reaction
 BoundaryBus Bus of Boundary connectors (for multiple configurations)
 Boundary Connector to transport material, translational momentum, and thermal energy
 Amagat Connector for additivity of volume
 Dalton Connector for additivity of pressure
 DaltonNode Internal node for additivity of pressure
 Intra Connector for translational and thermal exchange among species within a phase
 Inter Connector for translational and thermal exchange among species, regardless of phase
 Inert Connector for translational and thermal exchange
 InertNode Internal node for Intra and Inter
 Translational Connector for the advection or diffusion of translational momentum
 ThermalDiffusive Connector for the diffusion of thermal energy
 RealInput "input Real" as a connector
 RealInputInternal Internal "input Real" as a connector
 RealInputBus Bus of RealInput connectors
 RealInputBusInternal Internal bus of RealInput connectors
 RealOutput "output Real" as a connector
 RealOutputInternal Internal "output Real" as a connector
 RealOutputBus Bus of RealOutput connectors
 RealOutputBusInternal Internal bus of RealOutput connectors
