modelPowerSimplified

Power calculation comparison among three mover types, using simplified power computation for m_flow and dp
Diagram of PowerSimplifiedOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

This example compares the power consumed by pumps that take three different control signals. Each pump has identical mass flow rate and pressure rise.

Note that for the instances IBPSA.Fluid.Movers.FlowControlled_dp and IBPSA.Fluid.Movers.FlowControlled_m_flow, we had to assign the efficiencies (otherwise the default constant efficiency of 0.7 would have been used). In these models, the power consumption is computed using similarity laws, but using the mass flow rate as opposed to the speed, because speed is not known in these two models. This is an approximation at operating points in which the speed is different from the nominal speed N_nominal because similarity laws are valid for speed and not for mass flow rate.

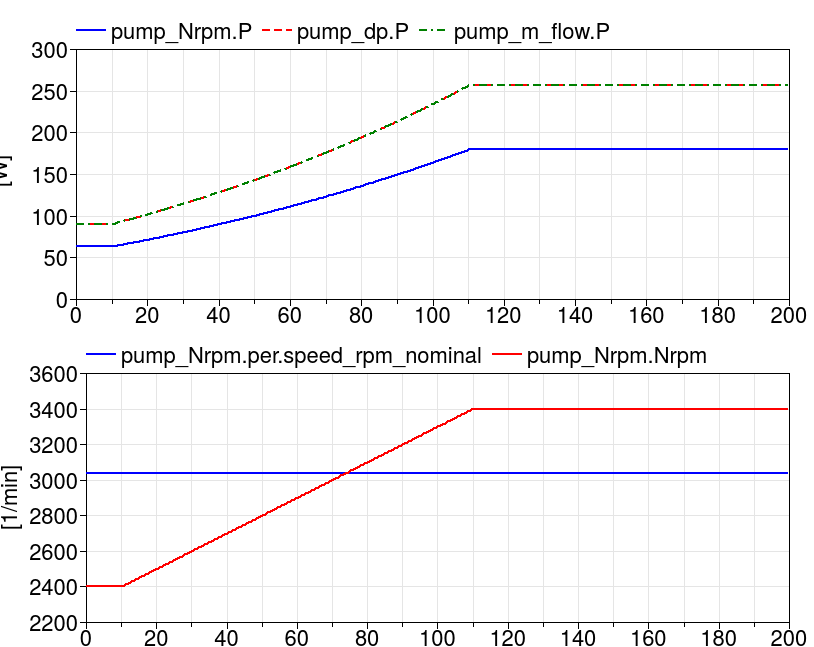

The figure below shows the approximation error for the power calculation where the speed Nrpm differs from the nominal speed Nnominal.


Parameters

TypeNameDefaultDescription
Modelica.SIunits.MassFlowRatem_flow_nominal3Nominal mass flow rate
Data.Pumps.Wilo.Stratos30slash1to8perPump performance data

Components

TypeNameDefaultDescription
IBPSA.Fluid.Movers.SpeedControlled_Nrpmpump_NrpmPump with RPM as control signal
IBPSA.Fluid.Movers.FlowControlled_dppump_dpPump with pressure rise as control signal
IBPSA.Fluid.Movers.FlowControlled_m_flowpump_m_flowPump with mass flow rate as control signal
IBPSA.Fluid.Sources.Boundary_pTbouPressure source
IBPSA.Fluid.FixedResistances.PressureDropresFlow resistance
IBPSA.Fluid.Sources.Boundary_pTsink
Modelica.Blocks.Sources.RamprampRamp for pump speed control signal
Modelica.Blocks.Sources.RealExpressiondpSetPressure rise across pump
Modelica.Blocks.Sources.RealExpressionm_flowSetPump mass flow rate
Modelica.Blocks.Routing.Multiplex3result

Contents

NameDescription
MediumMedium model

Revisions

  • March 11, 2016, by Michael Wetter:
    Revised implementation by assigning the data record directly in the instances pump_dp and pump_m_flow, because using a parameter and assigning this parameter leads in OpenModelica to the error message expected subtype of record IBPSA.Fluid.Movers.Data.Generic.
  • March 2, 2016, by Filip Jorissen:
    Revised implementation for #417.
  • November 5, 2015, by Michael Wetter:
    Changed parameters since the power is no longer a parameter for the movers that take mass flow rate or head as an input. This is for issue 457.
  • November 22, 2014, by Michael Wetter:
    Revised implementation.
