modelBESTEST

Diagram of BESTESTOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

BESTEST implementation of IDEAS. This model generates the results in the figures below, which has last been updated on December 16, 2019 for IDEAS 2.1. Reference results are from the EnergyPlus website.

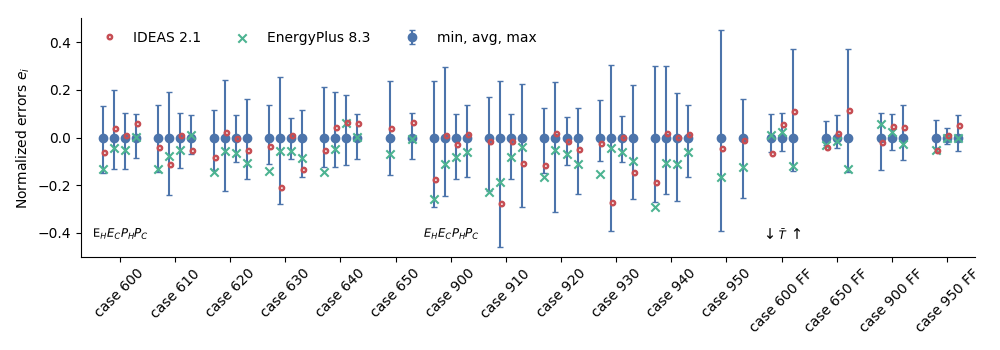

Series 600, series 900 and free float normalised results:
results

EH and EC indicate normalised total yearly energy use for heating and cooling. PH and PC indicate normalised peak average hourly energy use for heating and cooling. For free float cases, normalised minimum, average and maximum temperatures are reported.

Parameters

TypeNameDefaultDescription
RealMWh1/3600000000.0
RealkW1/1000

Components

TypeNameDefaultDescription
Modelica.Units.SI.Energy[6]EAnnHea600
Modelica.Units.SI.Energy[6]EAnnCoo600
Modelica.Units.SI.Energy[6]EAnnHea900
Modelica.Units.SI.Energy[6]EAnnCoo900
Modelica.Units.SI.Energy[6]EHouHea600
Modelica.Units.SI.Energy[6]EHouCoo600
Modelica.Units.SI.Energy[6]EHouHea900
Modelica.Units.SI.Energy[6]EHouCoo900
Modelica.Units.SI.Power[6]QPeaHea600
Modelica.Units.SI.Power[6]QPeaCoo600
Modelica.Units.SI.Power[6]QPeaHea900
Modelica.Units.SI.Power[6]QPeaCoo900
Real[4]TAnnAvg
Real[4]THouAvg
Modelica.Units.SI.Temperature[4]Tmax
Modelica.Units.SI.Temperature[4]Tmin
IDEAS.Buildings.Validation.Cases.Case600Case600
IDEAS.Buildings.Validation.Cases.Case600FFCase600FF
IDEAS.Buildings.Validation.Cases.Case610Case610
IDEAS.Buildings.Validation.Cases.Case620Case620
IDEAS.Buildings.Validation.Cases.Case630Case630
IDEAS.Buildings.Validation.Cases.Case640Case640
IDEAS.Buildings.Validation.Cases.Case650Case650
IDEAS.Buildings.Validation.Cases.Case650FFCase650FF
IDEAS.Buildings.Validation.Cases.Case900Case900
IDEAS.Buildings.Validation.Cases.Case900FFCase900FF
IDEAS.Buildings.Validation.Cases.Case910Case910
IDEAS.Buildings.Validation.Cases.Case920Case920
IDEAS.Buildings.Validation.Cases.Case930Case930
IDEAS.Buildings.Validation.Cases.Case940Case940
IDEAS.Buildings.Validation.Cases.Case950Case950
IDEAS.Buildings.Validation.Cases.Case950FFCase950FF
BaseClasses.SimInfoManagerBestestsim

Revisions

  • December 16, 2019 by Filip Jorissen:
    Updated results after having updated convection implementation #1099.
  • June 7, 2018 by Filip Jorissen:
    Revised implementation using dedicated SimInfoManger for #838.
  • March 30, 2017 by Filip Jorissen:
    Revised figure and documentation.
  • July 25, 2016 by Filip Jorissen:
    Revised implementation.
