.IDEAS.Controls.Continuous.Examples.SignalRanker

Information

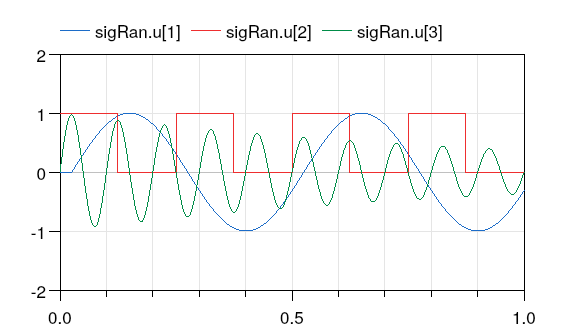

Example that demonstrates the use of the signal ranker model. The figure below shows the input and output signals of the block. Note that sigRan.y[1] ≥ sigRan.y[2] ≥ sigRan.y[3].

Revisions

• October 15, 2021, by Michael Wetter:
  Moved start time of sine input signal to avoid simultaneous state event and time event.
  This is for IDEAS, #1534.
• November 21, 2011, by Michael Wetter:
  Added documentation.
