modelDetailedHouse3
Extends from DetailedHouse2 (Adding solar screens).
Information
This example extends the second example by adding an occupancy and lighting model. Based on the selected options, the system automatically calculates the zone's internal heat gains, relative humidity, and CO2 concentration. The model implements a continuous occupancy schedule of one person and LED lighting for the zone. The lighting operates when occupants are present.
Required models
- IDEAS.Buildings.Components.Occupants.Fixed
- IDEAS.Buildings.Components.LightingType.LED
- IDEAS.Buildings.Components.LightingControl.OccupancyBased
Similar to the IDEAS.Buildings.Components.Shading.Screen model used in IDEAS.Examples.Tutorial.DetailedHouse.DetailedHouse2, these model are utilized internally and can be set in the parameter windows. They should not be dragged and dropped.
Connection instructions
Set the appropriate replaceable models in the dialogue window of the zone model.
Reference result

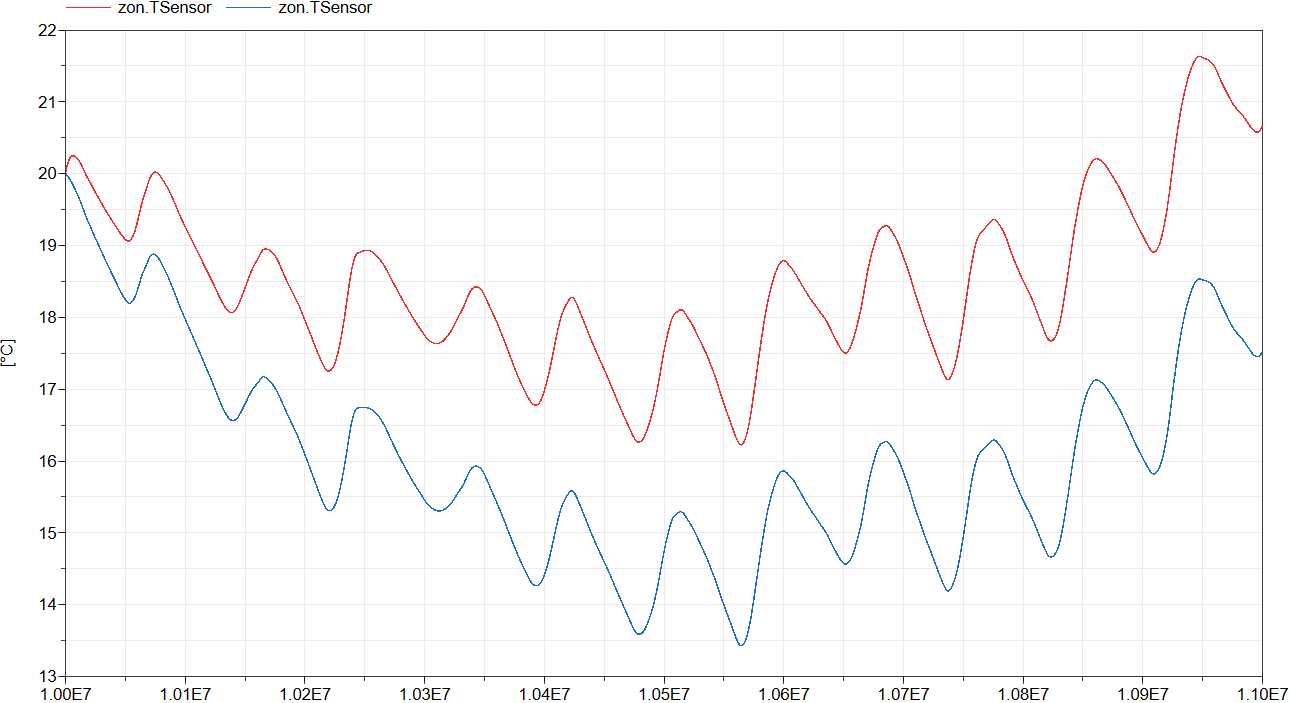

The figure below shows the operative zone temperature without (blue) and with (red) occupant and lighting.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Length | l (from DetailedHouse1) | 8 | Zone length |
| Modelica.Units.SI.Length | w (from DetailedHouse1) | 4 | Zone width |
| Modelica.Units.SI.Length | h (from DetailedHouse1) | zon.hZone | Zone height (Default) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| IDEAS.BoundaryConditions.SimInfoManager | sim (from DetailedHouse1) | ||
| IDEAS.Buildings.Components.Zone | zon (from DetailedHouse1) | Zone model | |
| IDEAS.Buildings.Components.OuterWall | outWalWes (from DetailedHouse1) | Western outer wall model | |
| IDEAS.Buildings.Components.OuterWall | outWalEas (from DetailedHouse1) | Eastern outer wall model | |
| IDEAS.Buildings.Components.OuterWall | outWalNor (from DetailedHouse1) | Northern outer wall model | |
| IDEAS.Buildings.Components.OuterWall | outWalSou (from DetailedHouse1) | Southern outer wall model | |
| IDEAS.Buildings.Components.Window | win (from DetailedHouse1) | Window model | |
| IDEAS.Buildings.Components.SlabOnGround | slaOnGro (from DetailedHouse1) | Floor model | |
| IDEAS.Buildings.Components.OuterWall | cei (from DetailedHouse1) | Ceiling model | |
| Modelica.Blocks.Sources.Constant | con (from DetailedHouse2) | Solar screen's external control signal |
