.IDEAS.ThermalZones.ReducedOrder.RC.ThreeElements

Information

This model adds one further element for the floor plate. Long-term effects dominate the excitation of the floor plate and thus the excitation fundamentally differs from excitation of outer walls. Adding an extra element for the floor plate leads to a finer resolution of the dynamic behaviour but increases calculation times. The floor plate is parameterized via the length of the RC-chain nFloor, the vector of the capacities CFloor[nFloor], the vector of the resistances RFloor[nFloor] and the remaining resistance RFloorRem.

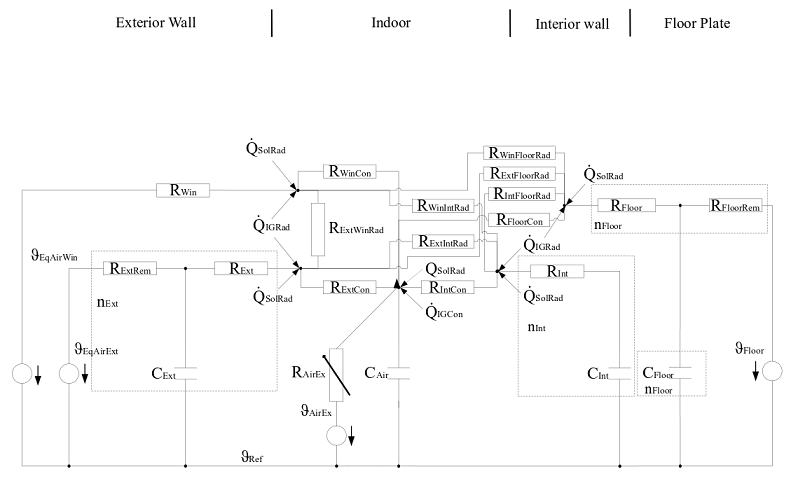

The image below shows the RC-network of this model.

Revisions

• March 7, 2022, by Michael Wetter:
  Removed massDynamics.
  This is for #1542.
• December 9, 2019, by Moritz Lauster:
  Changes nExt to nFloor for RFloor and CFloor
• July 11, 2019, by Katharina Brinkmann:
  Renamed alphaFloor to hConFloor, alphaFloorConst to hConFloor_const
• August 31, 2018 by Moritz Lauster:
  Updated schema in documentation to fix issue 997.
• July 15, 2015 by Moritz Lauster:
  First Implementation.
