modelProcess

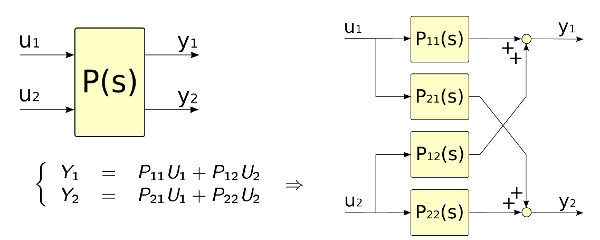

Two inputs Two outputs process Y1 = P11*u1 + P12*u2 and Y2 = P21*u1 + P22*u2
Diagram of ProcessOpen the diagram
▶ Check in your browser

Information

Description

Two inputs two outputs process



The four transfer functions are defined via their numerators and denumerators.

Parameters

TypeNameDefaultDescription
P11
Real[:]P11_num{1}Transfer function num.
Real[:]P11_den{1, 1}Transfer function den.
P12
Real[:]P12_num{1}Transfer function num.
Real[:]P12_den{1, 1}Transfer function den.
P21
Real[:]P21_num{1}Transfer function num.
Real[:]P21_den{1, 1}Transfer function den.
P22
Real[:]P22_num{1}Transfer function num.
Real[:]P22_den{1, 1}Transfer function den.

Connectors

TypeNameDefaultDescription
Modelica.Blocks.Interfaces.RealInputu1input
Modelica.Blocks.Interfaces.RealInputu2input
Modelica.Blocks.Interfaces.RealOutputy1output
Modelica.Blocks.Interfaces.RealOutputy2output

Components

TypeNameDefaultDescription
LinearSystems.Continuous.TransferFunctionP11
LinearSystems.Continuous.TransferFunctionP12
LinearSystems.Continuous.TransferFunctionP21
LinearSystems.Continuous.TransferFunctionP22
Modelica.Blocks.Math.Addadd
Modelica.Blocks.Math.Addadd1

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012
List of revisions:

  • 11 May 2012 (author: Marco Bonvini)

Main Authors:
Marco Bonvini; <bonvini@elet.polimi.it>
Alberto Leva <leva@elet.polimi.it>
Politecnico di Milano
Dipartimento di Elettronica e Informazione
Via Ponzio 34/5
20133 Milano - ITALIA -
