.IndustrialControlSystems.Controllers.I

Information

Description

Integral controller with Automatic, Tracking mode and bias signal.
The control law is defined as

            1
  CS(s) = ----- (SP(s) - PV(S))
           sTi



Scheme



NameDescriptionConditional?
SPSet PointNO
PVProcess VariableNO
CSControl SignalNO
TRTrack Reference signalYES (useTS)
TSTrack Switch signalYES (useTS)
BiasBiasing signalYES (useBIAS)
ATreqAutoTuning requestYES (*)
(*) AutoTuning Not available here, please see the package
AutoTuning

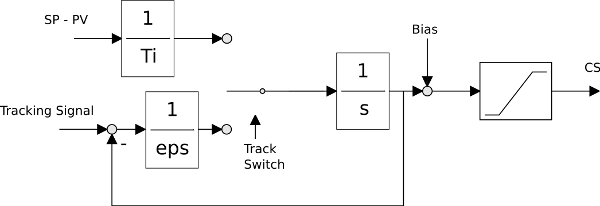

The controller can have various operating conditions:
In the Automatic mode, the control output is computed with the integral control law, while in the tracking mode
it is defined by the input TR.

To note that in the tracking mode the output signal CS is equal to
              1
  CS(s) = -------- TR(S)
           1+s*eps

where eps is a small time constant. Thanks to such a scheme, the integrator does not diverge while the tracking mode
is enabled.
