modelTestRelay

Test of relay controllers
Diagram of TestRelayOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

Description

In this example have been tested the Relay with hysteresis and without.
The images show the output y of the tro blocks, with a sine wave as input u.

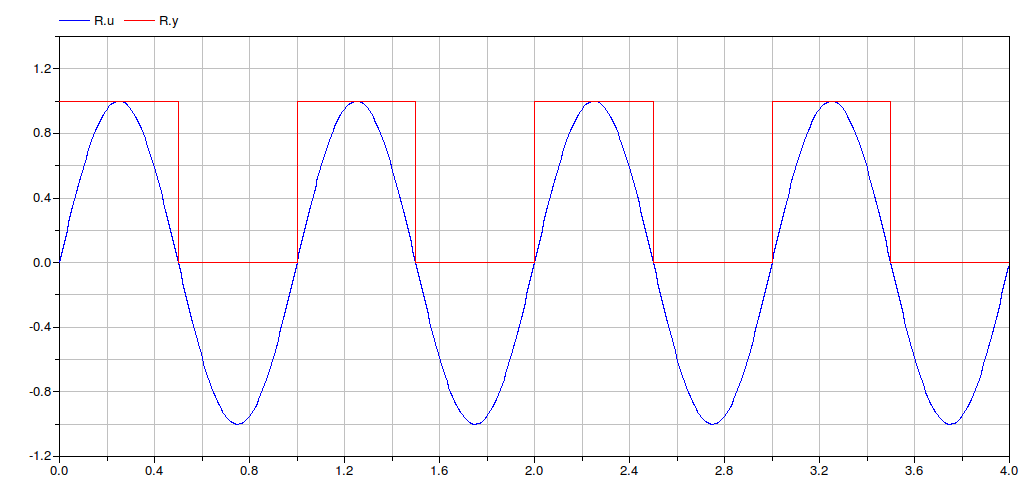

RELAY: input and output

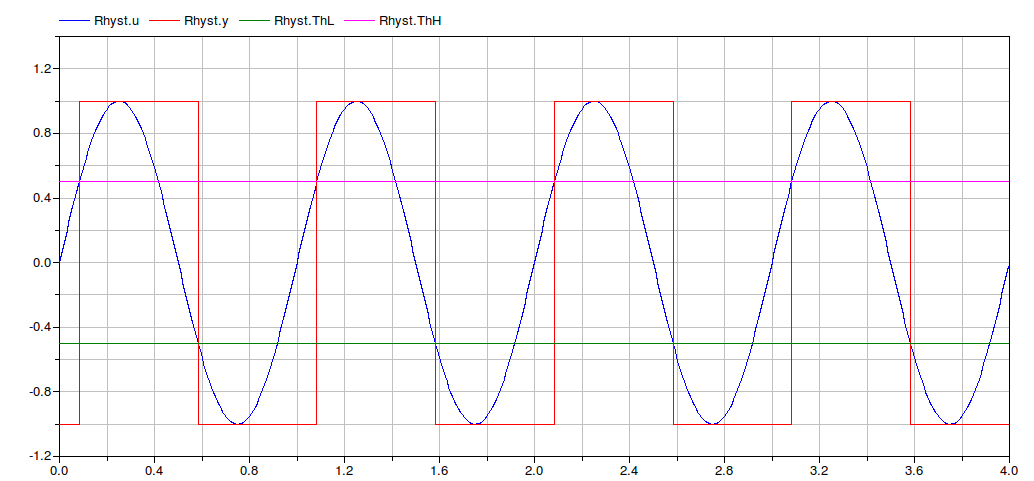

RELAY WITH HYST (0.5, -0.5): input and output


Components

TypeNameDefaultDescription
Modelica.Blocks.Sources.SineInput
IndustrialControlSystems.Controllers.Logic.RelayHysteresisRhyst_DIGITAL
IndustrialControlSystems.Controllers.Logic.RelayR_DIGITAL
IndustrialControlSystems.Controllers.Logic.RelayHysteresisRhyst
IndustrialControlSystems.Controllers.Logic.RelayR

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012
List of revisions:

  • 11 May 2012 (author: Marco Bonvini)

Main Authors:
Marco Bonvini; <bonvini@elet.polimi.it>
Alberto Leva <leva@elet.polimi.it>
Politecnico di Milano
Dipartimento di Elettronica e Informazione
Via Ponzio 34/5
20133 Milano - ITALIA -
