modelBasicComparisonFO

Comparison of the various discretisation methods (First Order)
Diagram of BasicComparisonFOOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

Description of the example

In this example are shown the step responces of a first order linear systems:

  • continuous,
  • discretised with BE,
  • discretised with FE,
  • and discretised with TU

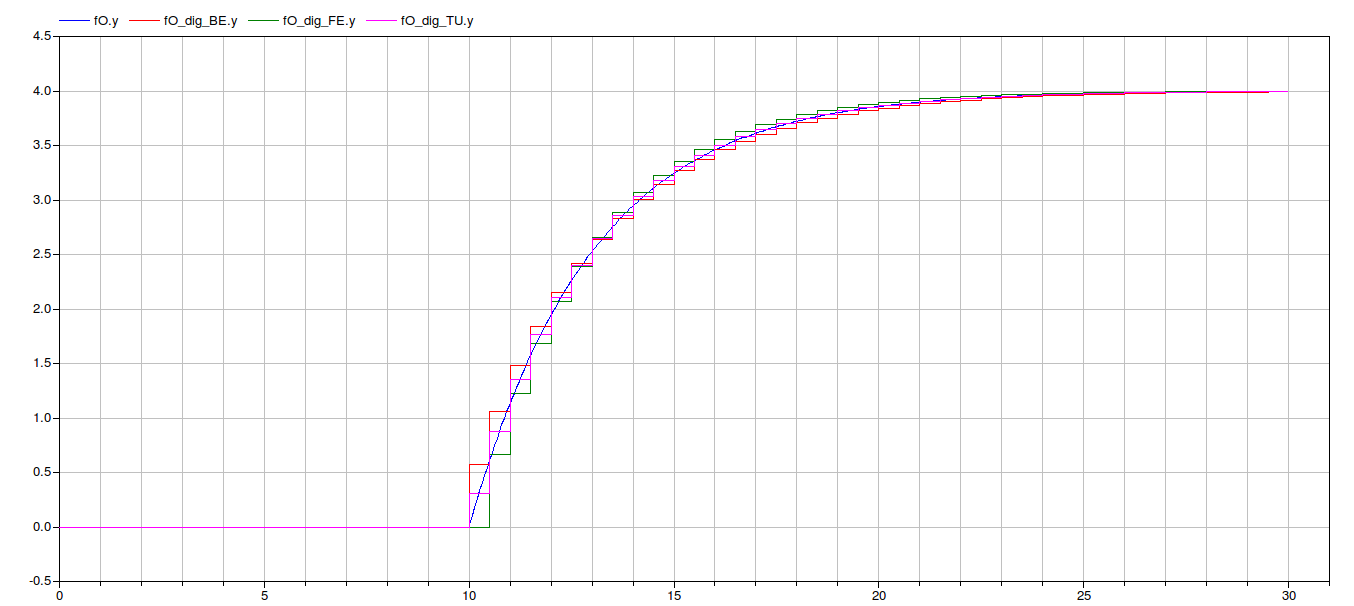

Comparison

Parameters

TypeNameDefaultDescription
First Order
Realmu_FO2First order process gain
Realtau_FO3First order time constant
Realy_start_FO0initial condition
Discretisation
RealTs0.5Sampling time

Components

TypeNameDefaultDescription
Realerror_BEfO.y - fO_dig_BE.y
Realerror_FEfO.y - fO_dig_FE.y
Realerror_TUfO.y - fO_dig_TU.y
Continuous.FirstOrderfO
Discrete.FirstOrderfO_dig_BE
Modelica.Blocks.Sources.StepstepSignal
Discrete.FirstOrderfO_dig_FE
Discrete.FirstOrderfO_dig_TU

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012
List of revisions:

  • 11 May 2012 (author: Marco Bonvini)

Main Authors:
Marco Bonvini; <bonvini@elet.polimi.it>
Alberto Leva <leva@elet.polimi.it>
Politecnico di Milano
Dipartimento di Elettronica e Informazione
Via Ponzio 34/5
20133 Milano - ITALIA -
