.Modelica.Mechanics.MultiBody.Visualizers.Advanced.SurfaceCharacteristics.rectangle

Information

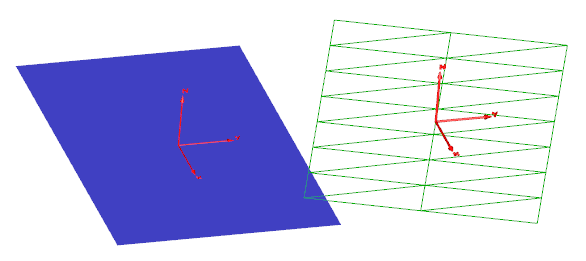

Function rectangle computes the X, Y and Z arrays to visualize a rectangle with model Rectangle. The image below shows two rectangles of

nu = 8,
nv = 3,
lu = 3,
lv = 2.

Interface

function rectangle
  extends Modelica.Mechanics.MultiBody.Interfaces.partialSurfaceCharacteristic(final multiColoredSurface = false);
  input SI.Distance lu = 1 "Length in direction u" annotation(
    Dialog);
  input SI.Distance lv = 3 "Length in direction v" annotation(
    Dialog);
end rectangle;
