.Modelica.Mechanics.MultiBody

Information

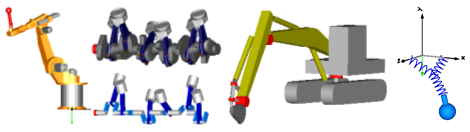

Library MultiBody is a free Modelica package providing 3-dimensional mechanical components to model in a convenient way mechanical systems, such as robots, mechanisms, vehicles. Typical animations generated with this library are shown in the next figure:

For an introduction, have especially a look at:

Copyright © 1998-2019, Modelica Association and contributors

Contents

Name Description
 UsersGuide User's Guide of MultiBody Library
 World World coordinate system + gravity field + default animation definition
 Examples Examples that demonstrate the usage of the MultiBody library
 Forces Components that exert forces and/or torques between frames
 Frames Functions to transform rotational frame quantities
 Interfaces Connectors and partial models for 3-dim. mechanical components
 Joints Components that constrain the motion between two frames
 Parts Rigid components such as bodies with mass and inertia and massless rods
 Sensors Sensors to measure variables
 Visualizers 3-dimensional visual objects used for animation
 Types Constants and types with choices, especially to build menus
 Icons Icons for MultiBody package
