.Modelica.Mechanics.MultiBody.Visualizers.FixedShape

Information

Model FixedShape defines a visual shape that is shown at the location of its frame_a. All describing data such as size and color can vary dynamically by providing appropriate expressions in the input fields of the parameter menu. The only exception is parameter shapeType that cannot be changed during simulation. The following shapes are currently supported via parameter shapeType (e.g., shapeType="box"):

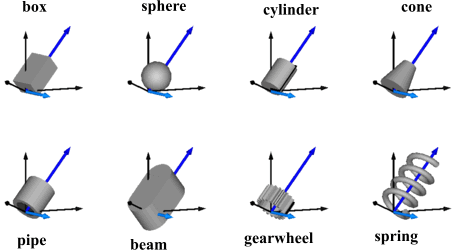

model Visualizers.FixedShape

The dark blue arrows in the figure above are directed along variable lengthDirection. The light blue arrows are directed along variable widthDirection. The coordinate systems in the figure represent frame_a of the FixedShape component.

Additionally, external shapes can be specified as (not all options might be supported by all tools):

The supported file formats are tool dependent. Most tools support at least DXF-files but may support other format as well (such as stl, obj, 3ds). Since visualization files contain color and other data, the corresponding information in the model is usually ignored. For information about DXF files, see Wikipedia. As a default it is assumed that the DXF coordinates are in the "frame_a"-system and in meters, and that the 3dfaces are two-sided. Some tools support only 3dface (for geometry) and layer (for advanced coloring).

The sizes of any of the above components are specified by the length, width and height variables. Via variable extra additional data can be defined:

shapeTypeMeaning of parameter extra
"cylinder" if extra > 0, a black line is included in the cylinder to show the rotation of it.
"cone" extra = diameter-left-side / diameter-right-side, i.e.,
extra = 1: cylinder
extra = 0: "real" cone.
"pipe" extra = outer-diameter / inner-diameter, i.e,
extra = 1: cylinder that is completely hollow
extra = 0: cylinder without a hole.
"gearwheel" extra is the number of teeth of the (external) gear. If extra < 0, an internal gear is visualized with |extra| teeth. The axis of the gearwheel is along "lengthDirection", and usually: width = height = 2*radiusOfGearWheel.
"spring" extra is the number of windings of the spring. Additionally, "height" is not the "height" but 2*coil-width.
external shape extra = 0: Visualization from file is not scaled.
extra = 1: Visualization from file is scaled with "length", "width" and "height" of the shape

Parameter color is a vector with 3 elements, {r, g, b}, and specifies the color of the shape. {r, g, b} are the "red", "green" and "blue" color parts. Note, r, g and b are given as Integer[3] in the ranges 0 … 255, respectively. The predefined type MultiBody.Types.Color contains a menu definition of the colors used in the MultiBody library together with a color editor.
