# .Modelica.Mechanics.Translational.Components.MassWithStopAndFriction

## Information

This element describes the Stribeck friction characteristics of a sliding mass, i. e. the frictional force acting between the sliding mass and the support. Included is a hard stop for the position.

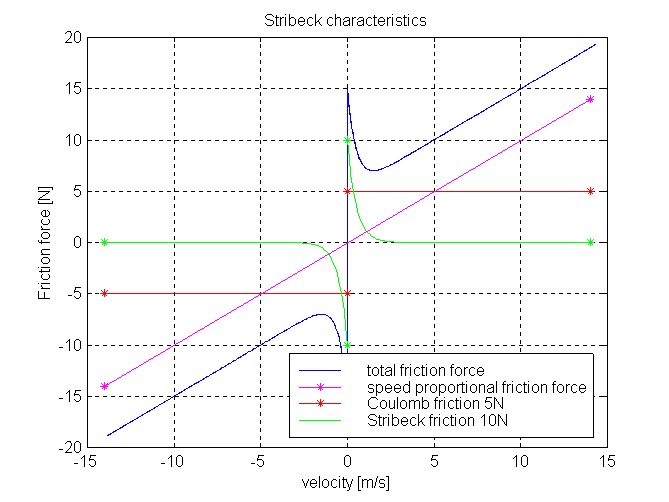

The surface is fixed and there is friction between sliding mass and surface. The frictional force f is given for positive velocity v by:

```f = F_Coulomb + F_prop * v + F_Stribeck * exp (-fexp * v)
```

The distance between the left and the right connector is given by parameter L. The position of the center of gravity, coordinate s, is in the middle between the two flanges.

There are hard stops at smax and smin, i. e. if `flange_a.s >= smin` and ```flange_b.s <= xmax``` the sliding mass can move freely.

When the absolute velocity becomes zero, the sliding mass becomes stuck, i.e., the absolute position remains constant. In this phase the friction force is calculated from a force balance due to the requirement that the absolute acceleration shall be zero. The elements begin to slide when the friction force exceeds a threshold value, called the maximum static friction force, computed via:

```   maximum_static_friction =  F_Coulomb + F_Stribeck
```

This requires the states Stop.s and Stop.v . If these states are eliminated during the index reduction the model will not work. To avoid this any inertias should be connected via springs to the Stop element, other sliding masses, dampers or hydraulic chambers must be avoided.

For more details of the used friction model see the following reference:

Beater P. (1999):
Entwurf hydraulischer Maschinen. Springer Verlag Berlin Heidelberg New York.

The friction model is implemented in a "clean" way by state events and leads to continuous/discrete systems of equations which have to be solved by appropriate numerical methods. The method is described in (see also a short sketch in UsersGuide.ModelingOfFriction):

Otter M., Elmqvist H., and Mattsson S.E. (1999):
Hybrid Modeling in Modelica based on the Synchronous Data Flow Principle. CACSD'99, Aug. 22.-26, Hawaii.

More precise friction models take into account the elasticity of the material when the two elements are "stuck", as well as other effects, like hysteresis. This has the advantage that the friction element can be completely described by a differential equation without events. The drawback is that the system becomes stiff (about 10-20 times slower simulation) and that more material constants have to be supplied which requires more sophisticated identification. For more details, see the following references, especially (Armstrong and Canudas de Witt 1996):

Armstrong B. (1991):
Control of Machines with Friction. Kluwer Academic Press, Boston MA.
Armstrong B., and Canudas de Wit C. (1996):
Friction Modeling and Compensation. The Control Handbook, edited by W.S.Levine, CRC Press, pp. 1369-1382.
Canudas de Wit C., Olsson H., Astroem K.J., and Lischinsky P. (1995):
A new model for control of systems with friction. IEEE Transactions on Automatic Control, Vol. 40, No. 3, pp. 419-425.

#### Optional heatPort

The dissipated energy is transported in form of heat to the optional heatPort connector that can be enabled via parameter "useHeatPort". Independently whether the heatPort is or is not enabled, the dissipated power is defined with variable "lossPower". If contact occurs at the hard stops, the lossPower is not correctly modelled at this time instant, because the hard stop would introduce a Dirac impulse in the lossPower due to the discontinuously changing kinetic energy of the mass (lossPower is the derivative of the kinetic energy at the time instant of the impact).

## Contents

Name Description
PartialFrictionWithStop Base model of Coulomb friction elements with stop

## Revisions

#### Release Notes:

• First Version from December 7, 1999 by P. Beater (based on Rotational.BearingFriction)
• July 14, 2001 by P. Beater, assert on initialization added, diagram modified
• October 11, 2001, by Hans Olsson, Dassault SystÃ¨mes AB, modified assert to handle start at stops, modified event logic such if you have friction parameters equal to zero you do not get events between the stops.
• June 10, 2002 by P. Beater, StateSelect.always for variables s and v (instead of fixed=true).
