modelDrumBoiler

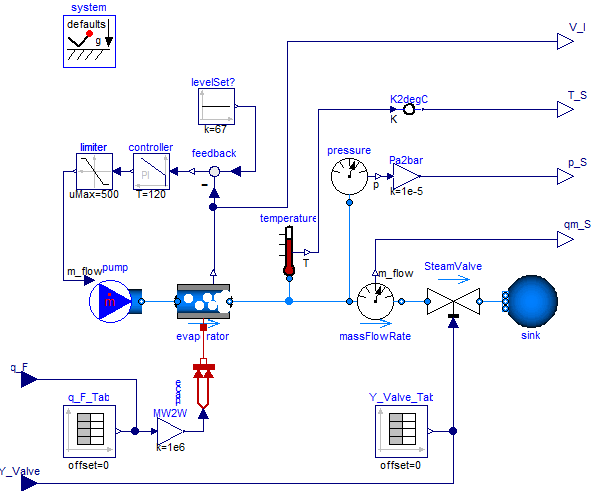

Complete drum boiler model, including evaporator and supplementary components
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | use_inputs | false | = true, if external inputs are used, otherwise use test data contained internally |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.RealOutput | T_S | Steam temperature | |
| Modelica.Blocks.Interfaces.RealOutput | p_S | Steam pressure | |
| Modelica.Blocks.Interfaces.RealOutput | qm_S | Steam flow rate | |
| Modelica.Blocks.Interfaces.RealOutput | V_l | Liquid volume inside drum | |
| Blocks.Interfaces.RealInput | q_F | Fuel flow rate | |
| Blocks.Interfaces.RealInput | Y_Valve | Valve opening |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Fluid.Examples.DrumBoiler.BaseClasses.EquilibriumDrumBoiler | evaporator | ||
| Modelica.Thermal.HeatTransfer.Sources.PrescribedHeatFlow | furnace | ||
| Modelica.Fluid.Sources.FixedBoundary | sink | ||
| Modelica.Fluid.Sensors.MassFlowRate | massFlowRate | ||
| Modelica.Fluid.Sensors.Temperature | temperature | ||
| Modelica.Fluid.Sensors.Pressure | pressure | ||
| Modelica.Blocks.Continuous.PI | controller | ||
| Modelica.Fluid.Sources.MassFlowSource_h | pump | ||
| Modelica.Blocks.Math.Feedback | feedback | ||
| Modelica.Blocks.Sources.Constant | levelSetPoint | ||
| Modelica.Blocks.Math.Gain | MW2W | ||
| Modelica.Blocks.Math.Gain | Pa2bar | ||
| Modelica.Thermal.HeatTransfer.Celsius.FromKelvin | K2degC | ||
| Modelica.Blocks.Nonlinear.Limiter | limiter | ||
| Modelica.Fluid.Valves.ValveLinear | SteamValve | ||
| Modelica.Fluid.System | system | ||
| Modelica.Blocks.Sources.TimeTable | q_F_Tab | ||
| Modelica.Blocks.Sources.TimeTable | Y_Valve_Tab |
