modelInductorWithHysteresis

Information

This is a simple model of an inductor with a ferromagnetic core. The used GenericHystTellinenEverett model considers the ferromagnetic hysteresis, eddy currents and remanence of the core material. For example you can simulate the model for 0.02s and plot Core.B vs. Core.H to visualize the resulting hysteresis loops.

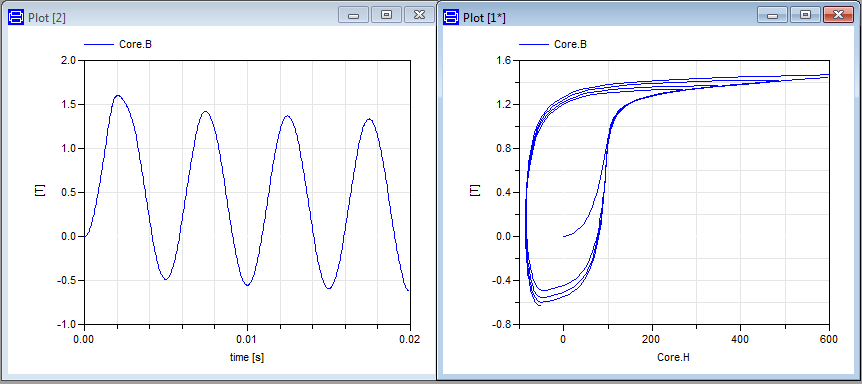

Fig. 1: Results Core.B(t) and Core.B(H) of the magnetic Core.

Components
