functionplotParameterizedCurve2
Plot two circles as parameterized curve
Extends from Modelica.Icons.Function (Icon for functions).
Information

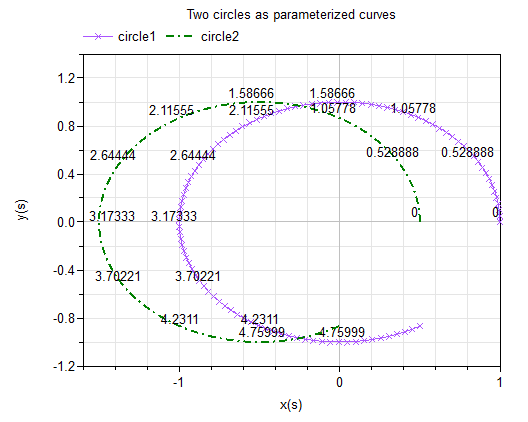

This function plots the following diagram of parameterized curves using function parameterizedCurves
Inputs
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.NonSI.Angle_deg | maxAngle | 300 | Maximum opening angle |
| Integer | nPoints | 100 | Number of points |
