.Modelica_LinearSystems2.Utilities.Plot.Examples.plotTwoSineDifferentStyles

Plot two sine functions in one diagram with different styles

Information

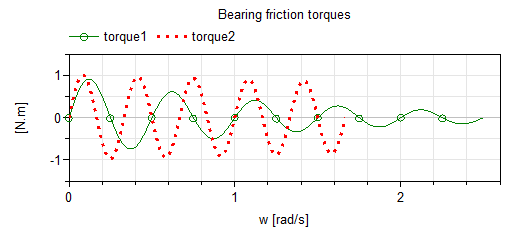

This function plots the following diagram (with default input arguments):

Interface

function plotTwoSineDifferentStyles
  extends Modelica.Icons.Function;
  input Modelica.Units.SI.Frequency freqHz1 = 2 "Frequency of sine wave 1";
  input Modelica.Units.SI.Frequency freqHz2 = 3 "Frequency of sine wave 2";
  input Modelica.Units.SI.Damping damping1 = 0.8 "Damping coefficient of sine wave 12";
  input Modelica.Units.SI.Damping damping2 = 0.1 "Damping coefficient of sine wave 2";
end plotTwoSineDifferentStyles;
