.Modelica_LinearSystems2.Utilities.Plot.Examples.rootLocusOfControlledSISO1Log

Root locus of a SISO system over controller gain k with logarithmic gridding

Information

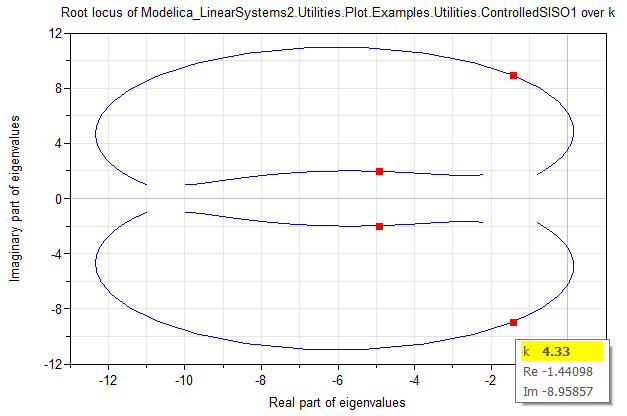

This function plots the root locus of model Plot.Examples.Utilities.ControlledSISO1 over the controller gain k (the menu on the right lower part is displayed when moving the cursor on one curve point; then all points belonging to the same parameter value are marked with a red square):

Interface

function rootLocusOfControlledSISO1Log
  extends Modelica.Icons.Function;
end rootLocusOfControlledSISO1Log;
