.Modelica_LinearSystems2.Utilities.Plot.Examples.rootLocusOfDrive

Information

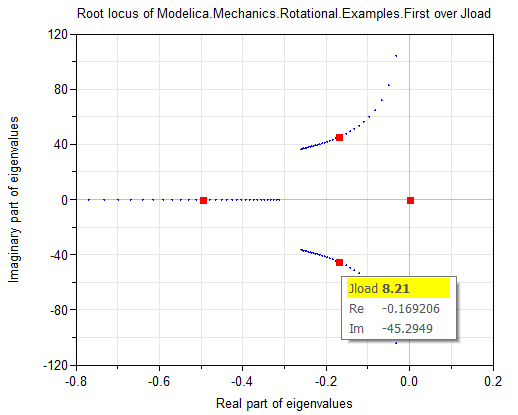

This function plots the root locus of model Rotational.Examples.First over the load inertia Jload (the menu on the right lower part is displayed when moving the cursor on one curve point; then all points belonging to the same parameter value are marked with a red square):

Interface

function rootLocusOfDrive
  extends Modelica.Icons.Function;
end rootLocusOfDrive;
