functionrootLocusOfDriveSolidLine

Plot the root locus of a drive with varying load

Extends from Modelica.Icons.Function (Icon for functions).

Information

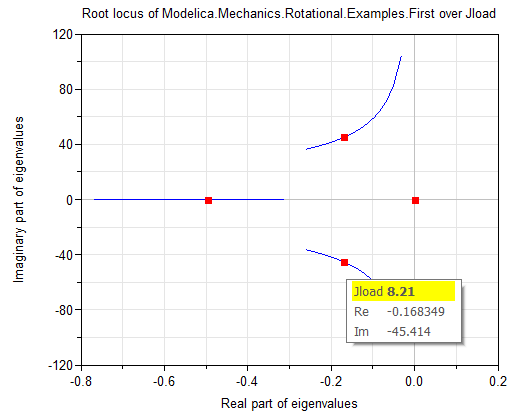

This function plots the root locus of model Rotational.Examples.First over the load inertia Jload:
