.Modelica_LinearSystems2.ZerosAndPoles.Plot.initialResponse

Information

Syntax

ZerosAndPoles.Plot.initialResponse(zp)
   or
ZerosAndPoles.Plot.initialResponse(
  zp,
  dt,
  tSpan,
  y0,
  columnLabels,
  defaultDiagram=Modelica_LinearSystems2.Internal.DefaultDiagramTimeResponse(),
  device=Modelica_LinearSystems2.Utilities.Plot.Records.Device())

Description

This function plots the initial response, i.e. the zeros input response of a zeros and poles transfer function. It is based on timeResponse.

Example

  ZerosAndPoles p = Modelica_LinearSystems2.ZerosAndPoles.p();
  Modelica_LinearSystems2.ZerosAndPoles zp = (p + 1)/(p^2 + 5*p + 12);
  Real y0=1;

algorithm
   Modelica_LinearSystems2.ZerosAndPoles.Plot.initialResponseZP(zp, y0=y0, dt=0.02, tSpan=3)

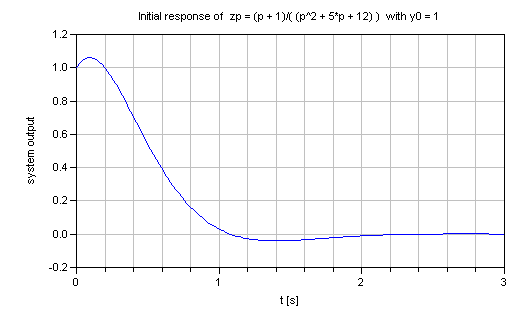

//  gives:

See also

impulse, step, ramp

Interface

encapsulated function initialResponse
  import Modelica;
  import Modelica_LinearSystems2;
  import Modelica_LinearSystems2.ZerosAndPoles;
  import Modelica_LinearSystems2.Utilities.Types.TimeResponse;
  input ZerosAndPoles zp;
  input Real dt = 0 "Sample time [s]";
  input Real tSpan = 0 "Simulation time span [s]";
  input TimeResponse response = TimeResponse.Initial "type of time response";
  input Real y0 "Initial output (for initial condition plot)";
  extends Modelica_LinearSystems2.Internal.PartialPlotFunction(defaultDiagram = Modelica_LinearSystems2.Internal.DefaultDiagramTimeResponse(heading = "Initial response of  zp = " + String(zp) + " with y0 = " + String(y0)));
end initialResponse;
