modelWhenFalling
Example for WhenFalling (return Satisfied when check is true and condition has a falling edge)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

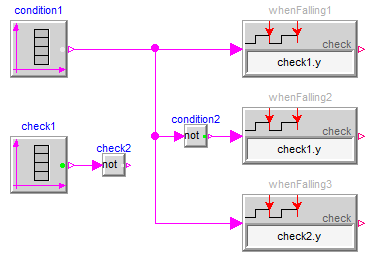

Using check block WhenFalling as
results in
 |
|

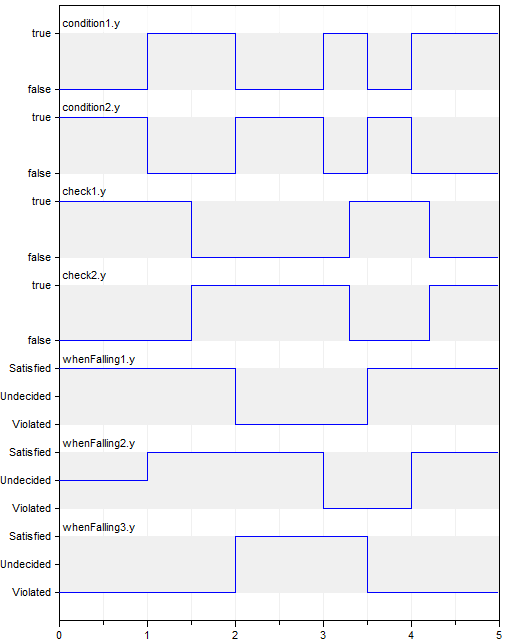

| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.BooleanTable | check1 | ||
| Modelica.Blocks.Sources.BooleanTable | condition1 | ||
| Modelica_Requirements.ChecksInFixedWindow.WhenFalling | whenFalling1 | ||
| Modelica_Requirements.ChecksInFixedWindow.WhenFalling | whenFalling2 | ||
| Modelica.Blocks.MathBoolean.Not | condition2 | ||
| Modelica_Requirements.ChecksInFixedWindow.WhenFalling | whenFalling3 | ||
| Modelica.Blocks.MathBoolean.Not | check2 |
