.Modelica_Synchronous.RealSignals.Sampler.SampleVectorizedAndClocked

Information

This block is similar to the SampleClocked block. The only difference is that the continuous-time input signal is a vector: All input signals are sampled and are associated with the scalar clock signal provided via the second input.

Example

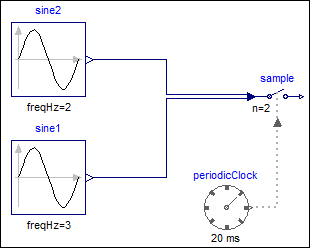

The following example has a vector as input, consisting of two different sine signals. These signals are sampled with a periodic clock of 20 ms period:

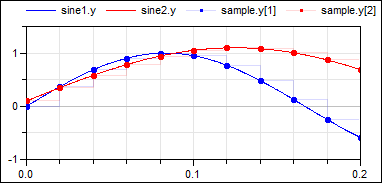

	model	simulation result
