.Modelica_Synchronous.RealSignals.Sampler.SuperSample .Modelica_Synchronous.RealSignals.Sampler.SuperSampleThis block super-samples the clocked Real input signal u and provides it as clocked output signal y.
To be more precise: The clock of y is factor-times faster than the clock of u. At every tick of the clock of y, the value of y is set to the value of u from the last tick of the clock of u. The first activation of the clock of y coincides with the first activation of the clock of u. By default, the super-sampling factor is inferred, that is, it must be defined somewhere else. If parameter inferFactor = false, then the super-sampling factor is defined by Integer parameter factor.
For control applications this block introduces unnecessary "vibrations". In such a case it is better to use block SuperSampleInterpolated instead.

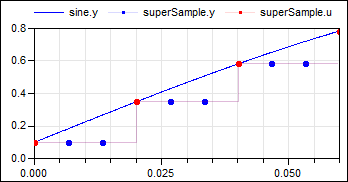

The following
example
samples a sine signal with a periodic clock of 20 ms period, and
then super-samples the resulting clocked signal with a factor of 3:
 |
 |
|
| model | simulation result |
As can be seen, superSample introduces factor-1 additional clock ticks for the output y. The super-sampling factor = 3 is displayed in the icon of the superSample block. Note the up-arrow in the icon of the superSample block indicates that the clock of superSample.y is faster as the clock of superSample.u.
