.PhotoVoltaics_TGM .PhotoVoltaics_TGMThis library is based on the PhotoVoltaics and the Buildings library. As the Buildings library is not yet converted to the Modelica Standard Library (MSL) 4.0.0, the Buildings specific examples are currently removed. These examples will be re-added as soon as a MSL 4.0.0 compatible version of the Buldings library is released. More information can be found at the User's Guide of the PhotoVoltaics library.

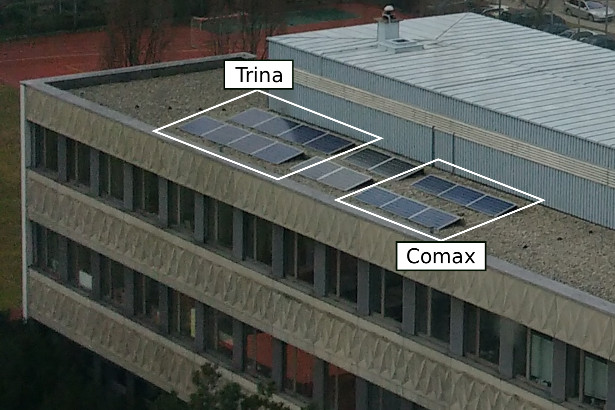

The data base of this library are two photo voltaic power plants at the TGM in Vienna, Austria. The GPS coordinates are 48.237111°N, 16.369000°E.
Two photovoltaic plants are investigated:
Comax |
Trina |
|
Modules |
TSM_200_DC01A |
TSM_230_PC05 |
Series connected modules |
6 |
8 |
azimuth |
0° |
0° |
gamma (inclination of PV modules) |
10° |
10° |
For these two plants different irradiance sources are investigated.
Measured data are also provided and may be compared with simulation data.
| Name | Description |
|---|---|
 TGM_Comax_Analytical_20160629 | Analytical sun model on 2016-06-29; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Analytical_20160704 | Analytical sun model on 2016-07-04; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Analytical_20160808 | Analytical sun model on 2016-08-08; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Analytical_2016 | Analytical sun model over the year 2016; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Measurement_20160629 | Measured irradiance model on 2016-06-29; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Measurement_20160704 | Measured irradiance model on 2016-07-04; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Measurement_20160808 | Measured irradiance model on 2016-08-08; Comax modules at TGM building in Vienna, Austria |
 TGM_Comax_Measurement_20160626_to_20161004 | Measured irradiance model from 2016-06-26 to 2016-10-04; Comax modules at TGM building in Vienna, Austria |
 TGM_Trina_Analytical_20160629 | Analytical sun model on 2016-06-29; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Analytical_20160704 | Analytical sun model on 2016-07-04; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Analytical_20160808 | Analytical sun model on 2016-08-08; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Analytical_2016 | Analytical sun model over the year 2016; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Measurement_20160629 | Measured irradiance model on 2016-06-29; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Measurement_20160704 | Measured irradiance model on 2016-07-04; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Measurement_20160808 | Measured irradiance model on 2016-08-08; Trina modules at TGM building in Vienna, Austria |
 TGM_Trina_Measurement_20160626_to_20161004 | Measured irradiance model from 2016-06-26 to 2016-10-04; Trina modules at TGM building in Vienna, Austria |
 WriteCSV | Simple block to write CSV files with one time and data column |
