modelReabsorption
Divide inflow to outflow and reabsorption
Extends from Physiolibrary.Icons.Reabsorption.
Information
Hydraulic Reabsorption

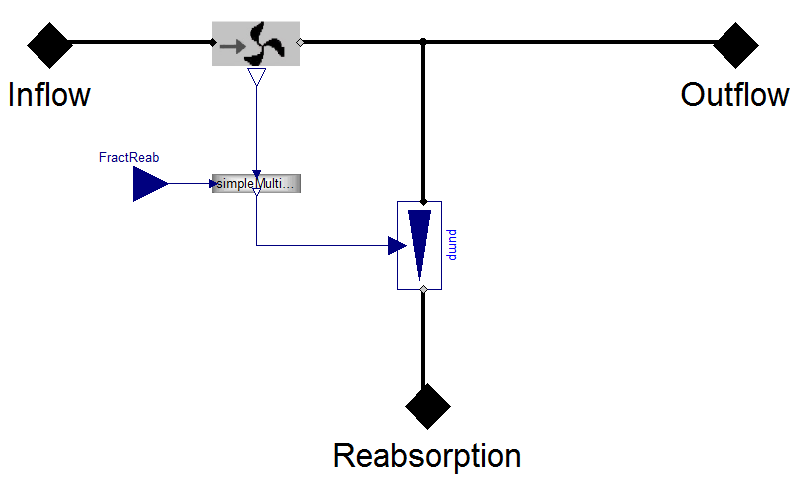

If useOutflowMin=false then the next schema is used.

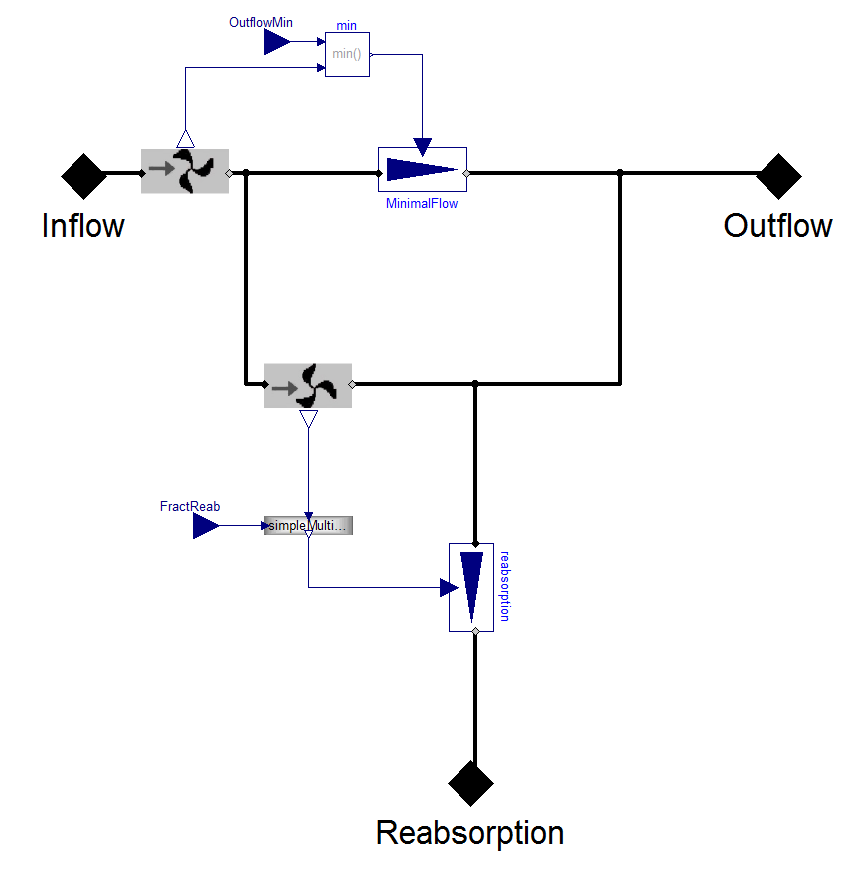

If useOutflowMin=true then the extended schema is used:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Physiolibrary.Types.VolumeFlowRate | OutflowMin | 0 | Minimal outflow if useExternalOutflowMin=false |
| Conditional inputs | |||
| Boolean | useExternalOutflowMin | false | =true, if minimal outflow is garanted |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Physiolibrary.Fluid.Interfaces.FluidPort_a | Inflow | ||
| Physiolibrary.Fluid.Interfaces.FluidPort_b | Outflow | ||
| Physiolibrary.Fluid.Interfaces.FluidPort_b | Reabsorption | ||
| Physiolibrary.Types.RealIO.FractionInput | FractReab | ||
| Physiolibrary.Types.RealIO.VolumeFlowRateInput | outflowMin | om |
Contents
| Name | Description |
|---|---|
 Medium |
Revisions
2017-2018
Marek Matejak, http://www.physiolib.com
