.RealTimeCoordinationLibrary.UsersGuide.Elements.DelegationPort .RealTimeCoordinationLibrary.UsersGuide.Elements.DelegationPortExamples are specified at: "Examples.InteractingComponents".
If two extended StateGraph2 models are included in different component instances they might still communicate asynchronously across the boundaries of these component instances with the help of delegation ports. Therefore, one component defines an output delegation port and the other defines an input delegation port. Both delegation ports are connected. Then, the component instance containing the message type connects the message type to the output delegation ports and the component instance containing the Mailbox instance connects the Mailbox instance to the input delegation port.

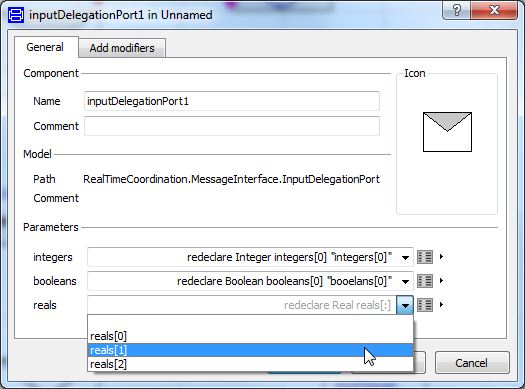

It is necessary that instances of DelegationPort redeclare the variables Integers, Booleans and Reals with the required array size as shown in the Figure below. Connected DelegationPorts must always have the same redeclaration.
