.ThermofluidStream.Media.XRGMedia.R1234yf_ph.temperature_ph

Information

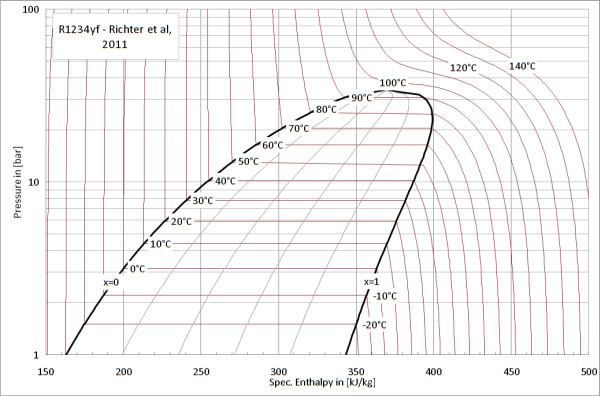

This function calculates the Kelvin temperature of R1234yf from the state variables p (absolute pressure) and h (specific enthalpy). The temperature is modelled by the fundamental equation of state of Richter (2011).

Interface

function temperature_ph
  extends Modelica.Icons.Function;
  input Modelica.Units.SI.Pressure p "pressure";
  input Modelica.Units.SI.SpecificEnthalpy h "specific enthalpy";
  input Integer phase = 0 "2 for two-phase, 1 for one-phase, 0 if not known";
  output Modelica.Units.SI.Temperature T "temperature";
end temperature_ph;
