recordGrundfosMAGNA3_32120_F_N
Pump data for a Grundfos MAGNA3 32-120 F N pump, also used in ThermofluidStream.Processes.Internal.TurboComponent.dp_tau_centrifugal
Extends from ThermofluidStream.Processes.Internal.CentrifugalPump.Measurements.GenericPump (Generic measurement data record for centrifugal pumps).
Information

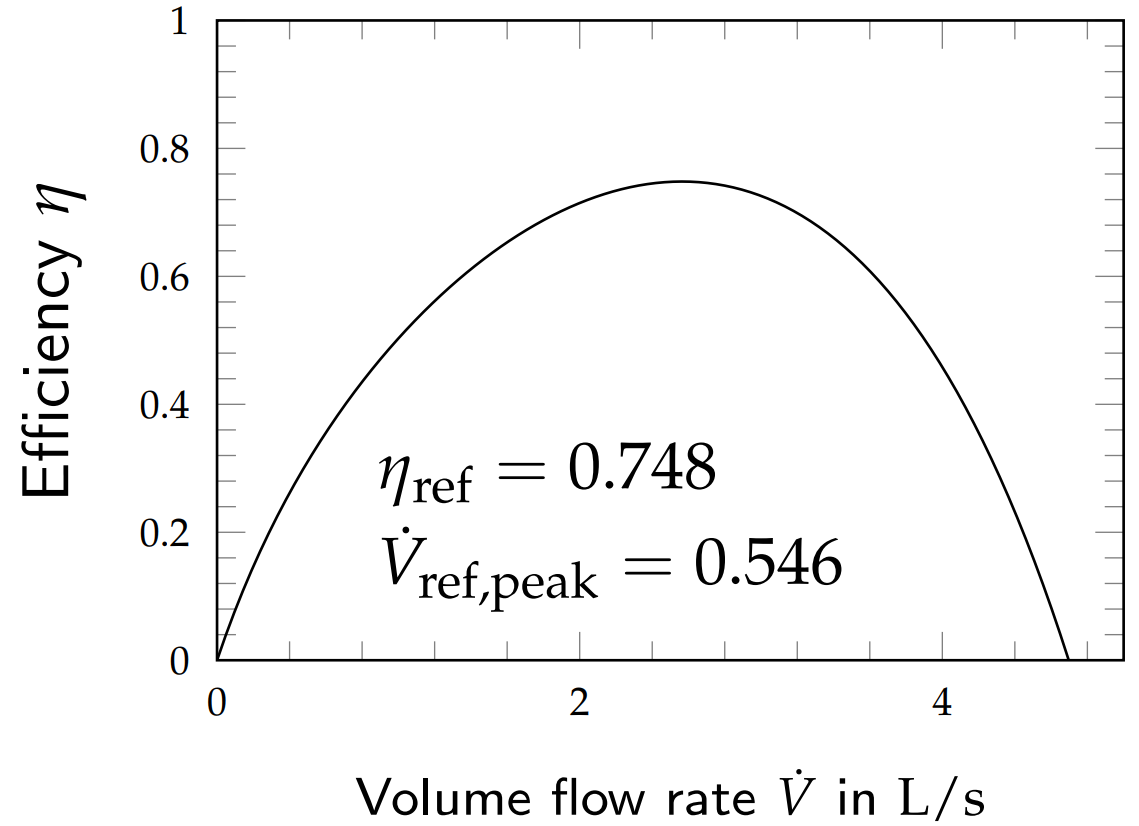

Data sheet of Grundfos MAGNA3 32-120 F N also used in ThermofluidStream.Processes.Internal.TurboComponent.dp_tau_centrifugal
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Density | rho_ref (from GenericPump) | 1000 | Reference density |
| SI.AngularVelocity | w_ref (from GenericPump) | 314.1592653589793 | Reference angular velocity |
| Integer | N (from GenericPump) | size(V_flow, 1) | Number of data points |
| Volume flow rate | |||
| SI.VolumeFlowRate[:] | V_flow (from GenericPump) | {0, 2.777777777778e-3, 4.166666666667e-3} | Volume flow rate data points |
| Head/Pressure rise | |||
| Boolean | setHead (from GenericPump) | true | = true, if head data points shall be given (= false, if pressure difference shall be given instead) |

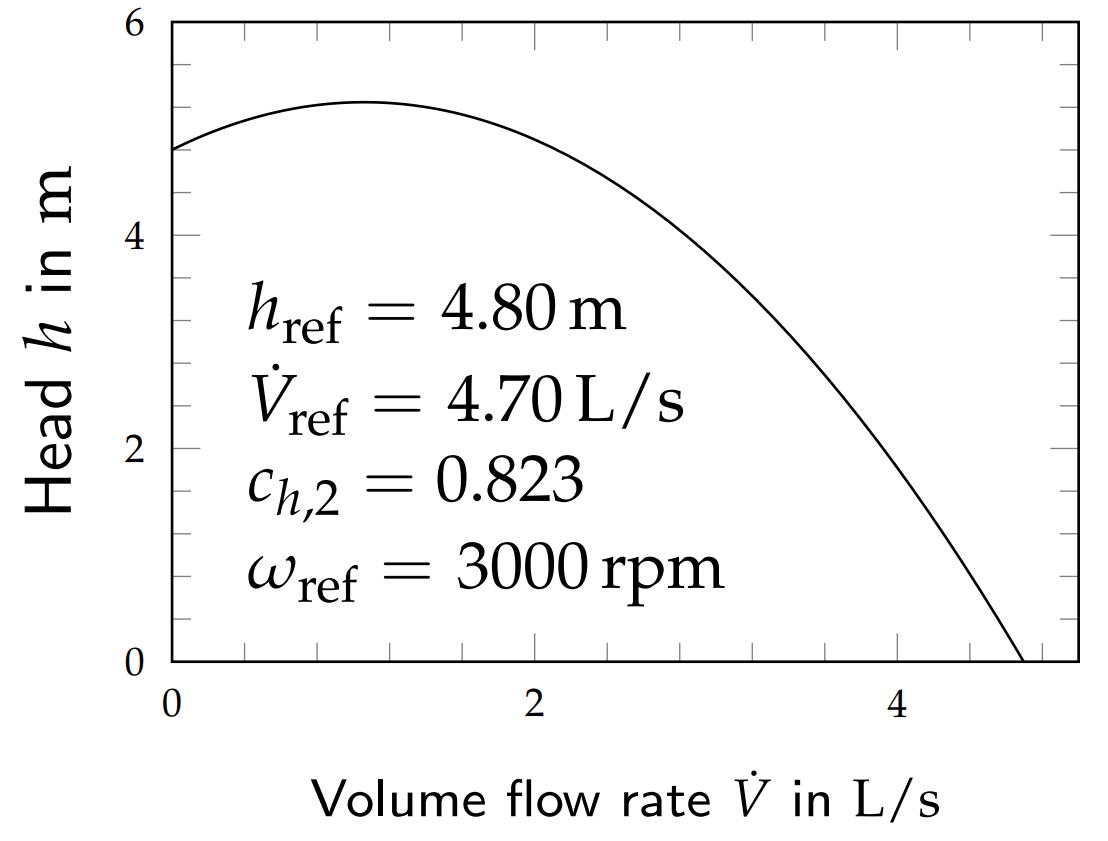

| SI.Height[:] | head (from GenericPump) | {10, 5, 0} | Head data points |
| SI.PressureDifference[:] | dp (from GenericPump) | {1e5, 0.5e5, 0} | Pressure rise data points |
| Power | |||

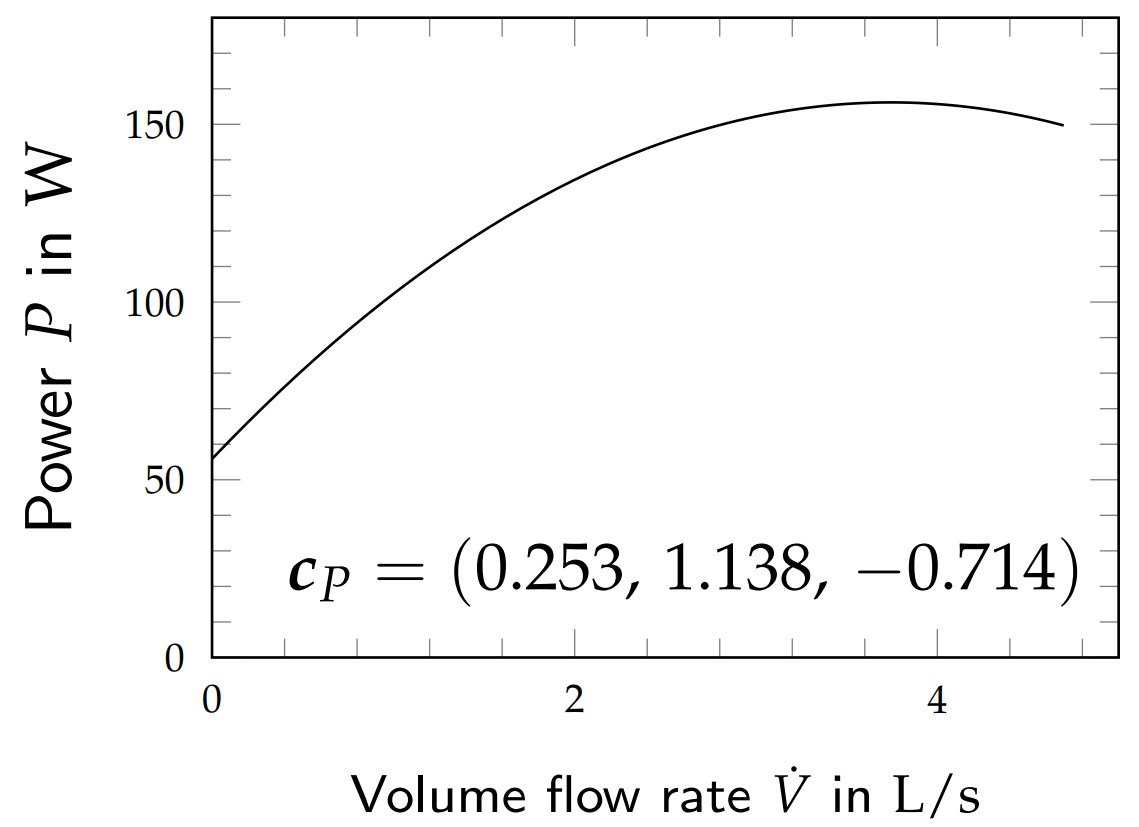

| SI.Power[:] | P (from GenericPump) | {100, 200, 250} | Power data points |
Revisions
-
May 2025, by Raphael Gebhart (raphael.gebhart@dlr.de):
Initial version.
