.AixLib.ThermalZones.HighOrder.Rooms.OFD.Ow1IwL2IwS1Gr1Uf1

Information

Overview

Model for a room with 1 outer wall, 2 inner walls load, 1 inner wall simple, 1 floor towards ground, 1 ceiling towards upper floor.

Concept

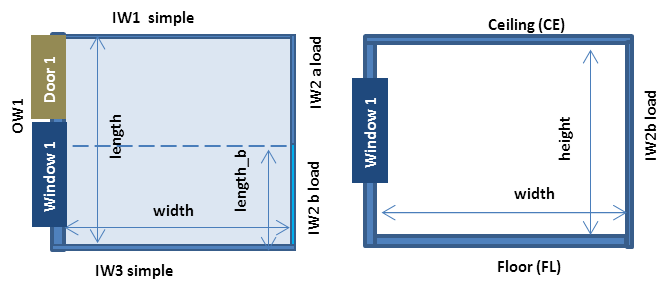

The following figure presents the room's layout:

Ground temperature

The ground temperature can be coupled to any desired prescriped temperature. Anyway, suitable ground temperatures depending on locations in Germany are listed as Θ'_m,e in the comprehensive table 1 in "Beiblatt 1" in the norm DIN EN 12831.

Or a ground temperature can be chosen according to a TRY region, which is listed below: if ...

TRY_Region == 1 then 282.15 K

TRY_Region == 2 then 281.55 K

TRY_Region == 3 then 281.65 K

TRY_Region == 4 then 282.65 K

TRY_Region == 5 then 281.25 K

TRY_Region == 6 then 279.95 K

TRY_Region == 7 then 281.95 K

TRY_Region == 8 then 279.95 K

TRY_Region == 9 then 281.05 K

TRY_Region == 10 then 276.15 K

TRY_Region == 11 then 279.45 K

TRY_Region == 12 then 283.35 K

TRY_Region == 13 then 281.05 K

TRY_Region == 14 then 281.05 K

TRY_Region == 15 then 279.95 K

Revisions

• April 23, 2020 by Philipp Mehrfeld:
  #752: Propagate all parameters correctly. Extend from new partial room model. Delete TIR and TMC. Tidy up.
• Mai 7, 2015 by Ana Constantin:
  Grount temperature depends on TRY
• April 18, 2014 by Ana Constantin:
  Added documentation
• July 7, 2011 by Ana Constantin:
  Implemented
