blockAutomaticThermalControl
Extends from BuildingControlLib.BuildingControl.VDI3813.Interfaces.Partial.PartialFunction (Superclass for all function blocks to provide graphics and enforce implementation of functionality).
Information
Overview
Block that implements function of "Automatic thermal control" from VDI 3813 [1, section 6.5.17, p. 59 - 61].
Functional Description
"By means of Automatic thermal control (RA-FL section 6, column 16; informative function block Figure 38), the sunshade is used in unoccupied rooms to support heating or cooling by deliberately admitting or preventing solar heat inputs. This helps avoiding overheating in summer and reducing the heating load in winter. To this end, the application function processes the input information about the occupancy state of the room (Occupancy evaluation), the outdoor brightness (Brightness measurement), the room temperature (Temperature measurement) and the setpoints (Setpoint calculation) and, on this basis, generates positioning commands for the sunshade."[1, section 6.5.17, p. 59 - 61]

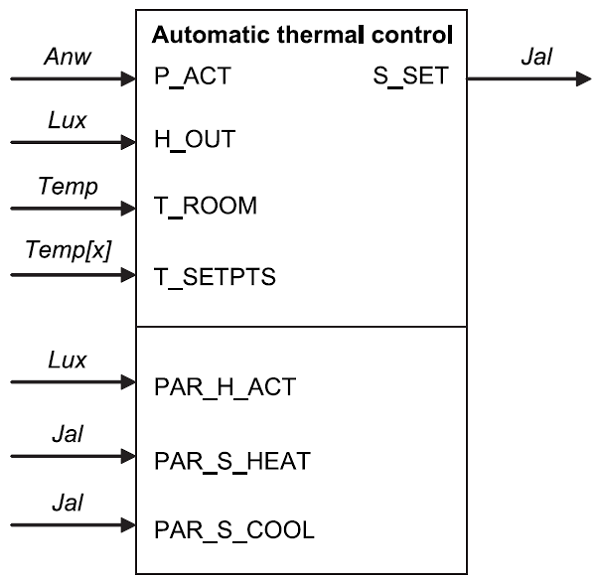

Fig. 1: "Informative representation of the application function Automatic thermal control", [1, section 6.5.17, Figure 38, p. 60]
|
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.SIunits.Illuminance | PAR_H_ACT | 100 | Threshold value of outdoor illuminance in lux. |
| Real | PAR_S_HEAT | {0, 45} | Heating mode setpoints for sun shade position in percent and slat angle in degree. |
| Real | PAR_S_COOL | {1, 11} | Cooling mode setpoints for sun shade position in percent and slat angle in degree. |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.BooleanInput | P_ACT | Evaluated presence signal (true = occupied / false = unoccupied). | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.RealInput | H_OUT | Measured outdoor illuminance in Lux. | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.RealInput | T_ROOM | Measured room air temperature in Kelvin. | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.RealInput | T_SETPTS | Array of setpoints for heating and cooling in every energy mode. | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.RealOutput | S_MAN | New position of sunshade. |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| PartialFunctionality | functionality (from PartialFunction) |
Revisions
- March 07, 2017 by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
Implemented.
