blockPresenceDetection
Extends from Interfaces.Partial.PartialFunction (Superclass for all function blocks to provide graphics and enforce implementation of functionality).
Information
Overview
Block that implements the functionality of "Presence detection" from VDI 3813 [1, section 6.1.2, p. 10-11].
Functional Description
"The sensor function Presence detection (RA-FL section 2, column 1, see Section 7.3, Bild 61; informative function block Figure 3) automatically detects the presence of persons in the room and passes the output information of either the “present” or the “absent” state to those application functions whose response is determined by the room occupancy state. Due to the use in connection with lighting functions, the output information must be generated without any delay when the status of the evaluation unit changes." [1, section 6.1.2, p. 10-11]

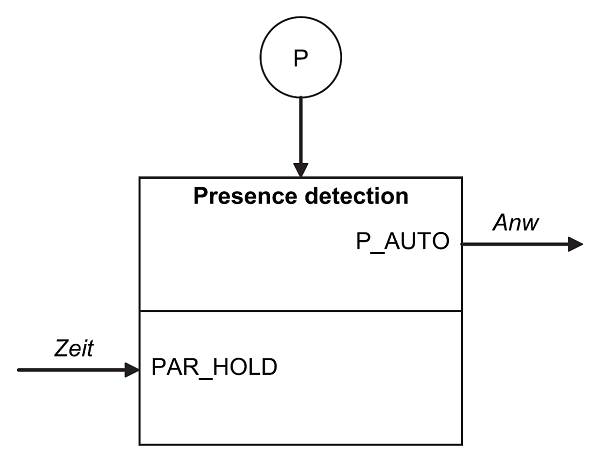

Fig. 1: "Informative representation of the sensor function Presence detection", [1, section 6.1.2, Figure 3, p. 11]
|
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.SIunits.Time | PAR_HOLD | 500 | Holding time in seconds for presence state, when presence has been detected. |
| Boolean | holdingActive | false | Flag for the presence holding process (true = holding is activated / false = holding is deactivated) |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.PhysicalBooleanInput | P | Physical signal of presence detection(true = presence detected / false = no presence detected). | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.BooleanOutput | P_AUTO | Boolean presence state in a room which comes from a sensor(true = occupied / false = unoccupied). |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| PartialFunctionality | functionality (from PartialFunction) |
Revisions
- March 07, 2017 by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
Implemented.
