blockWindVelocityMeasurement
Sensor function to retrieve wind velocity measurement from physical sensor.
Extends from Interfaces.Partial.PartialFunction (Superclass for all function blocks to provide graphics and enforce implementation of functionality).
Information
Overview
Block that implements function "Wind velocity measurement" from VDI 3813 [1, section 6.1.8, p. 16].
Functional Description
"The sensor function Wind velocity measurement (RA-FL section 2, column 7; informative function block Figure 9) provides information about the flow velocity of outdoor air at the measuring site (e. g. a building facade). This information is used to protect, e. g. particularly external sunshades from damage due to wind conditions." [1, section 6.1.8, p. 16]

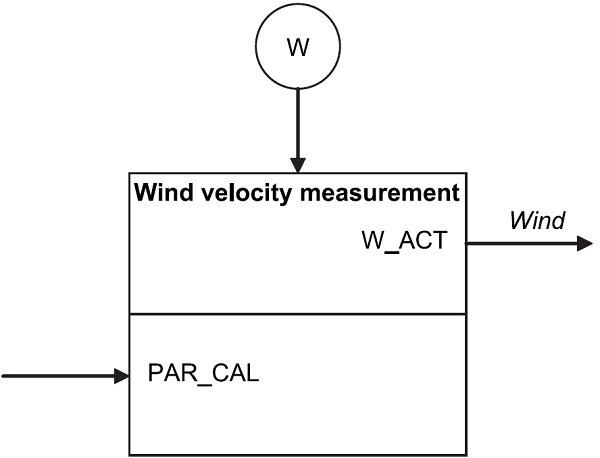

Fig. 1: "Informative representation of the sensor function Wind velocity measurement", [1, section 6.1.8, Figure 9, p. 16]
|
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | PAR_CAL_slope | 1 | Slope to calibrate measurement of wind velocity with a linear equation. |
| Real | PAR_CAL_yIntercept | 0 | Y-axis intercept of linear wind velocity calibration equation. |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.PhysicalRealInput | W | Physical signal of an outdoor wind velocity measurement (expected unit m/s). | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.RealOutput | W_ACT | Outdoor air velocity (expected unit m/s). |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| PartialFunctionality | functionality (from PartialFunction) |
Revisions
- March 07, 2017 by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
Implemented.
