.BuildingSystems.Electrical.AC.OnePhase.Lines.TwoPortRL

Information

This model represents a resistance and an inductance connected in series with two AC one phase interfaces. This model can be used to represent a single phase cable in a AC grid.

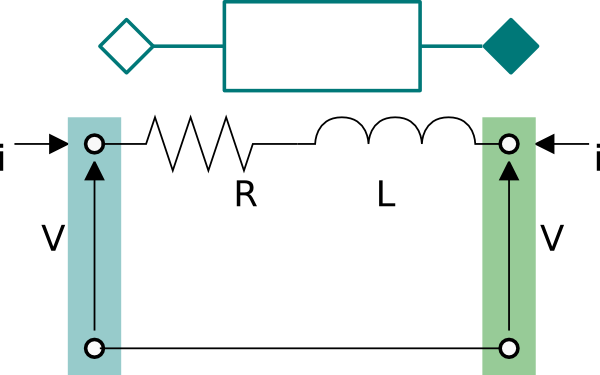

The model represents the lumped RL cable as shown in the figure below.

Revisions

• January 29, 2019, by Michael Wetter:
  Added replaceable for terminal.
• May 26, 2016, by Michael Wetter:
  Moved function call to PhaseSystem.thetaRef out of derivative operator as this is not yet supported by JModelica.
• March 9, 2015, by Marco Bonvini:
  Added parameter for start value of the current.
• January 14, 2015, by Marco Bonvini:
  Added equation that represents Joule losses
• August 5, 2014, by Marco Bonvini:
  Revised model and documentation.
