.BuildingSystems.Electrical.AC.ThreePhasesUnbalanced.Interfaces.WyeToDelta

Information

Adapter from Wye (Y) to Delta (D) connector. A three-phase unbalanced connector has three AC single phase connectors. Each AC single phase connector contains the phase voltage, which is measured between the phase and the neutral. This model converts the phase voltage to the line voltage, measured between the phases.

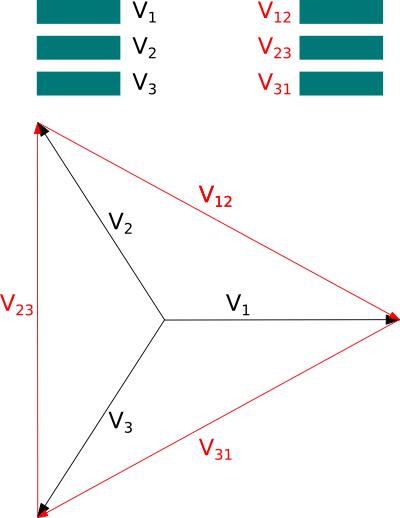

The image below show how the phasors are computed when converting from Y to D.

Revisions

• October 9, 2014, by Marco Bonvini:
  Revised documentation.
• June 5, 2014, by Marco Bonvini:
  Added model.
