.BuildingSystems.Electrical.AC.ThreePhasesUnbalanced.Lines.TwoPortInductance_N

Information

Inductive model that connects two AC three-phase unbalanced interfaces with neutral line. This model can be used to represent a cable in a three-phase unbalanced AC system.

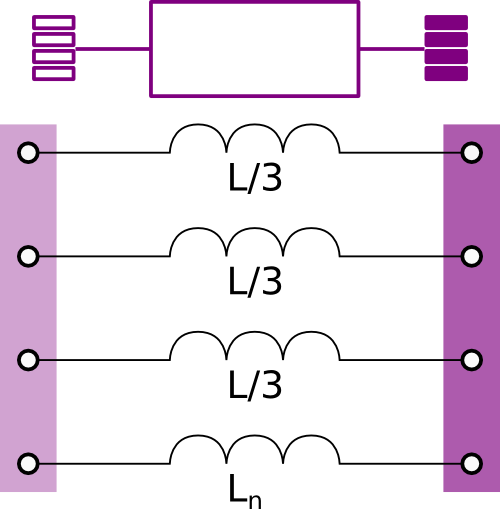

The model represents the lumped inductances as shown in the figure above. Assuming that the inductance L is the overall inductance of the cable, each line has an inductance equal to L/3.

The inductance of the neutral cable is defined separately using the parameter Ln.
