.BuildingSystems.Electrical.AC.ThreePhasesUnbalanced.Lines.TwoPortRL_N

Information

Resistive-inductive model that connects two AC three-phase unbalanced interfaces with neutral line. This model can be used to represent a cable in a three-phase unbalanced AC system.

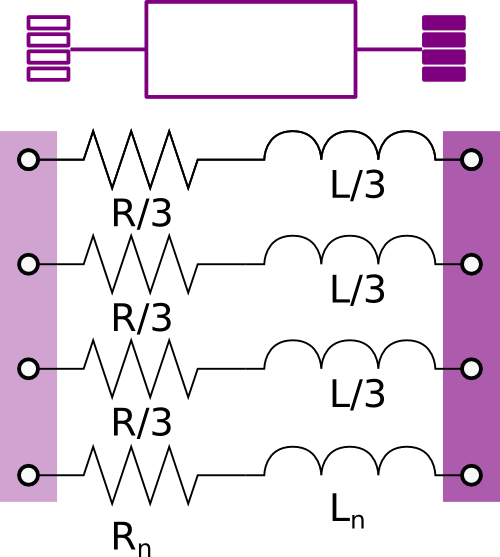

The model represents the lumped impedances as shown in the figure above. Assuming that the overall cable has a resistance R and an inductance L, each line has an inductance equal to L/3 and a resistance equal to R/3.

The resistance and the inductance of the neutral cable are defined separately using the parameters Rn and Ln.

Revisions

• March 9, 2015, by Marco Bonvini:
  Added parameter for start value of the current.
• January 14, 2015, by Marco Bonvini:
  Added model and user guide
