.BuildingSystems.Fluid.Movers.Validation.Pump_y_stratos

Information

This example provides a validation for the speed-controlled model. A Wilo Stratos 80/1-12 pump is simulated for five different speeds for load that changes with time. The resulting curves for the pump head and mass flow rate are plotted using colored lines over the pump data sheet. The resulting figures are shown below.

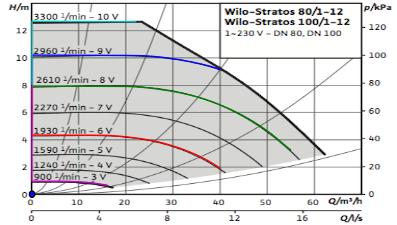

Pump heads:

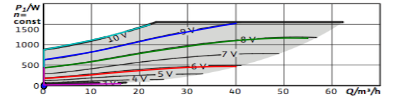

Pump electrical power:

The figures are adapted from the Wilo Stratos 80/1-12 data sheet.
