.Buildings.Airflow.Multizone.Validation.ThreeRoomsContam

Information

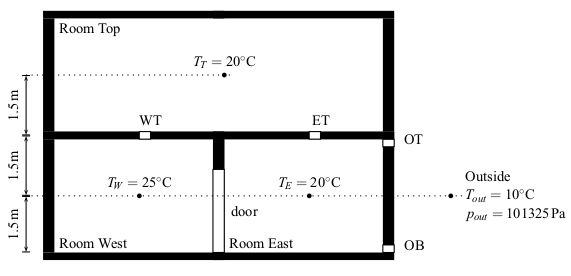

This is a model of three rooms that exchange air among each based on density difference between the air in the rooms and the outside. The model implements the configuration shown below.

For the model that has been used for a comparative model validation between CONTAM and the Buildings library in Wetter (2006), see Buildings.Airflow.Multizone.Validation.ThreeRoomsContamDiscretizedDoor.

References

Michael Wetter. Multizone Airflow Model in Modelica. Proc. of the 5th International Modelica Conference, p. 431-440. Vienna, Austria, September 2006.

Contents

Name	Description
Medium

Revisions

• October 9, 2020, by Michael Wetter:
  Refactored model to use the new door model.
• May 15, 2019, by Jianjun Hu:
  Replaced fluid source. This is for #1072.
• December 22, 2014 by Michael Wetter:
  Removed Modelica.Fluid.System to address issue #311.
• June 26, 2014, by Michael Wetter:
  Set the initial conditions to be fixed to avoid a translation warning. This required adding a heat conductor between each volume and its prescribed temperature in order to avoid an overdetermined system of equations.
• November 10, 2011, by Michael Wetter:
  Added documentation.
