modelCylindricalContactBody

Predefined cylindrical body with contact surfaces

Information

<!DOCTYPE html><html>

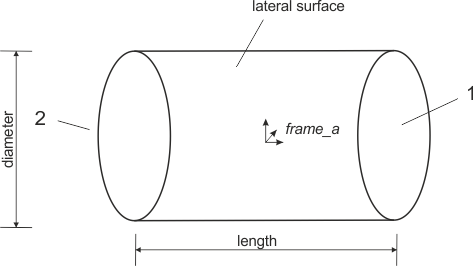

<p>This model defines a cylindrical body that can collide with every surface. Contact surfaces can be enabled seperately. The enumeration corresponds to the chosen directions and dimensions and is displayed in the Figure.</p>
<p><br/><br/><img src="resources/IdealizedContact/Images/cylindricalContactBody.png"/></p>
</html>

Parameters

TypeNameDefaultDescription
BooleanenableLateralSurfacetrue= true, if lateral contact surface shall be enabled
BooleanenableFrontSurface1true= true, if first front contact surface shall be enabled
BooleanenableFrontSurface2true= true, if second front contact surface shall be enabled
SI.Densitydensity7850density of the material
SI.Diameterdiameter0.015diameter of cylindrical surface
SI.Lengthlength0.05length of cylindrical surface
Modelica.Mechanics.MultiBody.Types.AxisdiameterDirection{0, 0, 1}unit vector in diameter direction
Modelica.Mechanics.MultiBody.Types.AxislengthDirection{1, 0, 0}unit vector in length direction
Modelica.Mechanics.MultiBody.Types.AxisheightDirectionabs(cross(diameterDirection, lengthDirection))
Modelica.Mechanics.MultiBody.Types.Axisx_direction{1, 0, 0}
Modelica.Mechanics.MultiBody.Types.Axisy_direction{0, 1, 0}
Modelica.Mechanics.MultiBody.Types.Axisz_direction{0, 0, 1}
Booleananimationtrue= true, if animation of the body shall be enabled
Modelica.Mechanics.MultiBody.Types.Colorcolor{0, 0, 255}color of shape
RealpiModelica.Constants.pi
contact surface animation
BooleansurfaceAnimationtrue= true, if animation of contact surfaces shall be enabled
BooleansurfaceAnimation_BCStrue= true, if animation of body coordinate system of contact surfaces shall be enabled
Modelica.Mechanics.MultiBody.Types.ColorsurfaceColor{255, 128, 0}color of the contact surface

Connectors

TypeNameDefaultDescription
Modelica.Mechanics.MultiBody.Interfaces.Frame_aframe_acenter of mass
Interfaces.Contact_acontact_lateral
Interfaces.Contact_acontact_front1
Interfaces.Contact_acontact_front2

Components

TypeNameDefaultDescription
Modelica.Mechanics.MultiBody.Parts.BodyShapecylindricalBody
ContactSurfaces.CylindricalContactSurfacecylindricalContactSurface
ContactSurfaces.CircularPlaneContactSurfacecircularPlaneContactSurface1
Modelica.Mechanics.MultiBody.Parts.FixedTranslationfixedTranslation1
Modelica.Mechanics.MultiBody.Parts.FixedTranslationfixedTranslation2
ContactSurfaces.CircularPlaneContactSurfacecircularPlaneContactSurface2
