.IndustrialControlSystems.Applications.ControlProblems.DecoupledControl.NoDecoupledControl

Information

Description

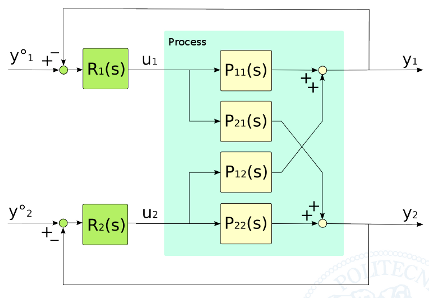

The 2x2 process reported below has to be controlled



The process is controlled using two PIs ( R1(s) and R2(s) ), each one controlling the corresponding output signal.


The goal of the control system is to maintain the output of the processe as close as possible to the set point references,
avoiding the cross effects between the first input and the second output and vice versa.
