modelTestPID_TDO

Test of the 2DoF digital PID controller with Time Division Output (TDO)

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

Description

In this example have been compared the 2DoF incremental PID, with its Time Division Output implementation.
The PIDs have to control the process with transfer function

   Y(s)             5*s +1
   ----  =  -----------------------
   U(s)        20*s^2 + 12*s + 1

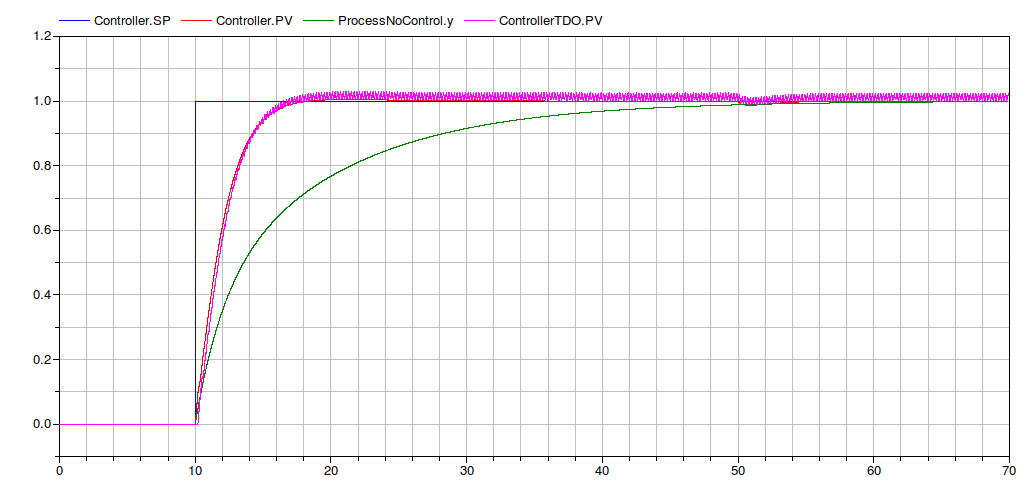

The image compares the outputs of the process y with and without the controllers action.

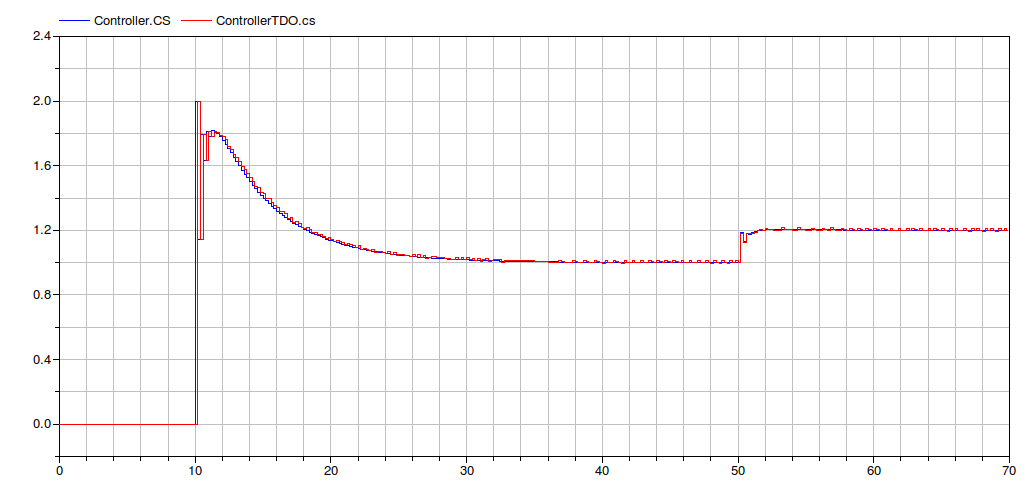

The following image compares the CS computed by the TDO controller (before its conversion), and the CS comuted by the
controller without TDO.

Basic implementation

The basic implementation of the digital incremental PID with TDO, introduces an high number of time events, thus the time spent
for simulating the model is high. Here follows the simulation results for the considere examples


  Integration started at T = 0 using integration method DASSL
  (DAE multi-step solver (dassl/dasslrt of Petzold modified by Dynasim))
  Integration terminated successfully at T = 70
    WARNING: You have many time events. This is probably due to fast sampling.
    Enable logging of event in Simulation/Setup/Debug/Events during simulation
     CPU-time for integration      : 5.68 seconds
     CPU-time for one GRID interval: 11.4 milli-seconds
     Number of result points       : 70000
     Number of GRID   points       : 501
     Number of (successful) steps  : 350000
     Number of F-evaluations       : 1295000
     Number of Jacobian-evaluations: 315000
     Number of (model) time events : 35000
     Number of (U) time events     : 0
     Number of state    events     : 0
     Number of step     events     : 0
     Minimum integration stepsize  : 2e-06
     Maximum integration stepsize  : 0.000978
     Maximum integration order     : 2

Components

Type	Name	Default	Description
Modelica.Blocks.Sources.Step	step
PID_2dof_TDO	ControllerTDO
LinearSystems.Continuous.TransferFunction	ProcessTDO
Modelica.Blocks.Math.Feedback	sub
Modelica.Blocks.Sources.Step	disturb
PID_2dof	Controller
LinearSystems.Continuous.TransferFunction	Process
LinearSystems.Continuous.TransferFunction	ProcessNoControl
Modelica.Blocks.Math.Feedback	sub1

Revisions

Industrial Control Systems (v 1.0.0) : April-May 2012
