modelBasicComparisonComplex
Comparison of the various discretisation methods (Complex Poles)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Description of the example

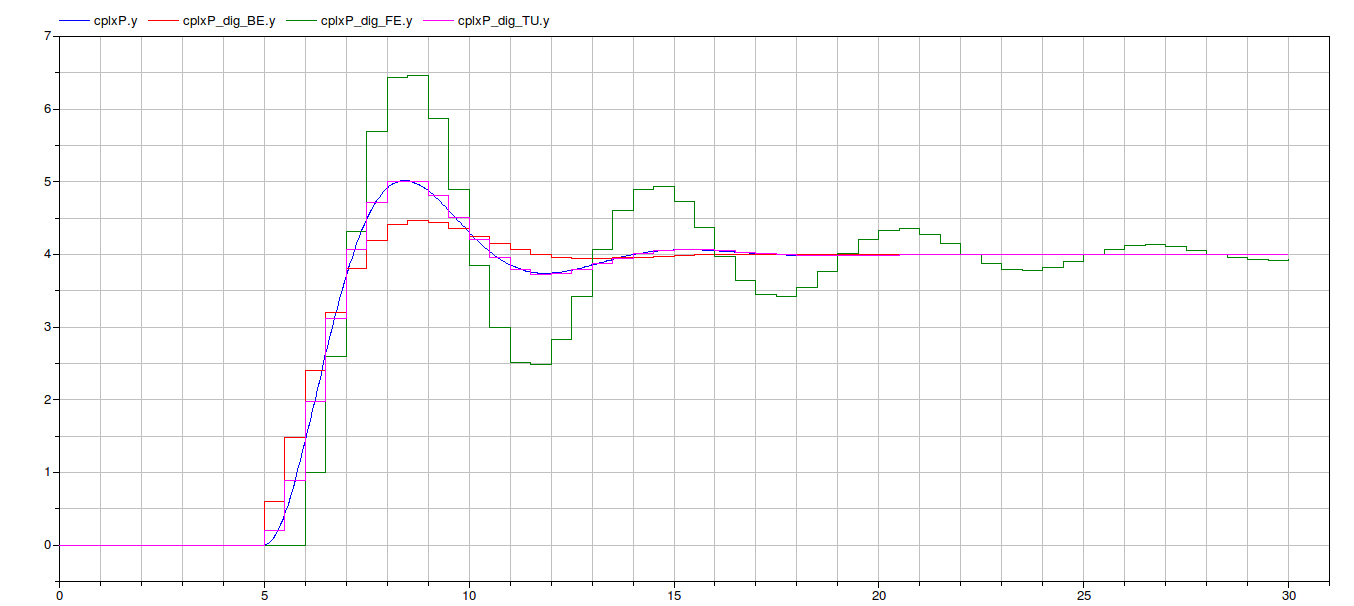

In this example are shown the step responces of a first order linear systems:
- continuous,
- discretised with BE,
- discretised with FE,
- and discretised with TU
Comparison
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Complex poles | |||
| Real | mu_cpx | 2 | Complex poles process gain |
| Real | omegan_cpx | 1 | Complex poles natural frequency |
| Real | xi_cpx | 0.4 | Complex poles damping factor |
| Real | y_start_cpx | 0 | Complex poles initial value |
| Real | dy_start_cpx | 0 | Complex poles initial slope |
| Discretisation | |||
| Real | Ts | 0.5 | Sampling time |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Real | error_BE | cplxP.y - cplxP_dig_BE.y | |
| Real | error_FE | cplxP.y - cplxP_dig_FE.y | |
| Real | error_TU | cplxP.y - cplxP_dig_TU.y | |
| Continuous.ComplexPoles | cplxP | ||
| Discrete.ComplexPoles | cplxP_dig_BE | ||
| Discrete.ComplexPoles | cplxP_dig_FE | ||
| Discrete.ComplexPoles | cplxP_dig_TU | ||
| Modelica.Blocks.Sources.Step | stepSignal |
