modeltestDelay
Test of the delay operator: continuous, discrete (with and without initialisation)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Description of the example
In this example are shown the delay operators.

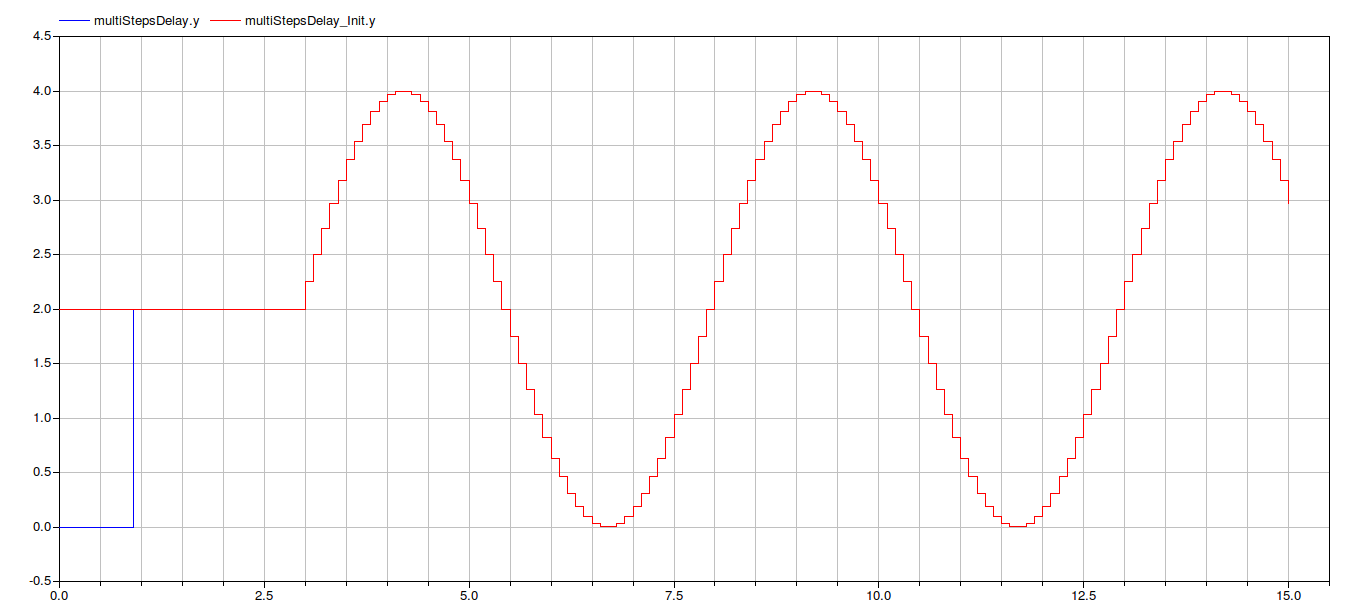

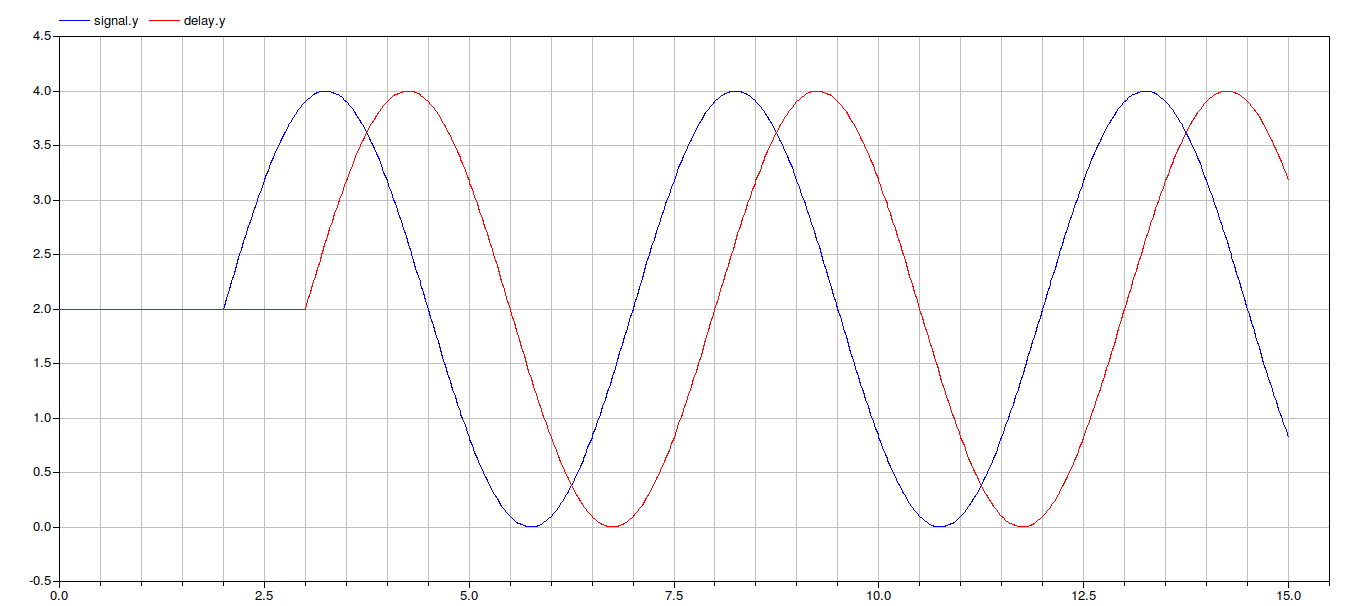

The figure shows both the continuous and the discrete delay operators. More in detail it is shown how the initialisation can
cause problems, in wrongly defined.
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.Sine | signal | ||
| IndustrialControlSystems.LinearSystems.Continuous.Delay | delay | ||
| IndustrialControlSystems.LinearSystems.Discrete.MultiStepsDelay | multiStepsDelay | ||
| IndustrialControlSystems.LinearSystems.Discrete.MultiStepsDelay | multiStepsDelay_Init |
