.Modelica_DeviceDrivers

Information

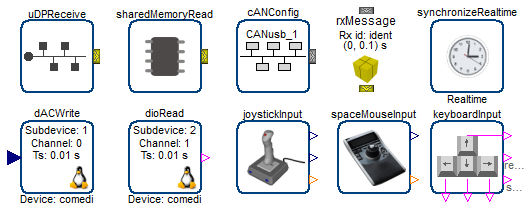

Library Modelica_DeviceDrivers is a Modelica package that interfaces hardware drivers. There is support for input devices, communication devices, shared memory, analog-digital converters and others.

For an introduction, have especially a look at:

• Getting started provides an overview of the Library inside the User's Guide.
• Release Notes summarizes the changes of new versions of this package.
• Contact gives author and acknowledgement information for this library.

The library is developed at https://github.com/modelica-3rdparty/Modelica_DeviceDrivers/. You can use the issue tracker provided by GitHub to report bugs or other issues (https://github.com/modelica-3rdparty/Modelica_DeviceDrivers/issues).

This Modelica package is free software and the use is completely at your own risk; it can be redistributed and/or modified under the terms of the BSD 3-Clause License.

The partly optional third-party sources / libraries with differing licenses are collected below the sub folder Resources/thirdParty and are listed in the file Resources/thirdParty/Readme.txt.

Contents

Name	Description
UsersGuide	User's Guide
Blocks	This package contains Modelica 3.2 compatible drag'n'drop device driver blocks.
ClockedBlocks	This package contains clocked blocks which utilize the drivers (requires support for synchronous language elements as introduced in Modelica 3.3).
Packaging	Package/Unpackage of variables for sending/receiving with communication devices
Communication	This package contains drivers for packet based communication devices such as network, CAN, shared memory, etc.
HardwareIO	This package contains drivers for data acquisition hardware, digital-analog converter, analog-digital converter and other interface hardware.
InputDevices	This package contains drivers for input devices, such as keyboard, gamecontroller, etc.
OperatingSystem	This package contains several useful implementations of the OS API, for example, a mutex, a sleep command, etc
EmbeddedTargets	This package contains code for platform-specific targets, such as microcontrollers
Utilities	Collection of utility elements used within the library
Incubate	New functionality that seems not ready for general usage
